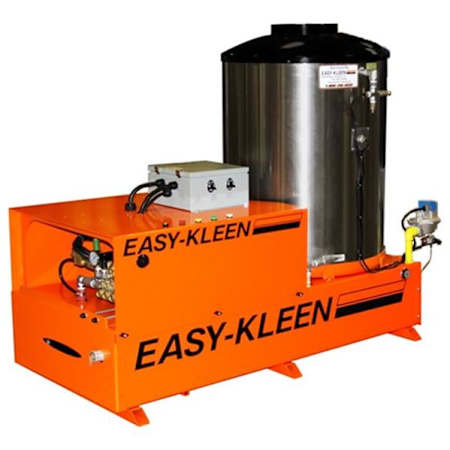

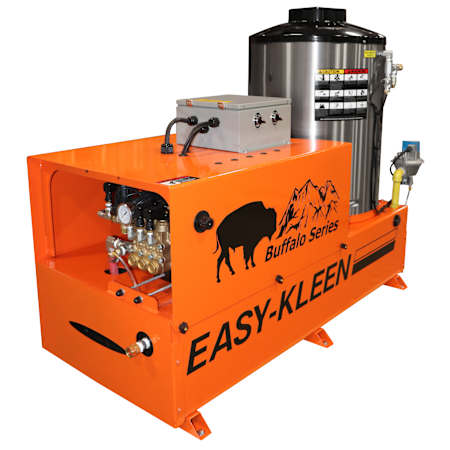

Easy-Kleen 3600 PSI 8 GPM Electric Powered (208 Volt 3-Phase) Hot Water Pressure Washer
Model: EZN3608-3-208-A|Item: bci5129306
Details
Product Information:
- 20-HP Techtop Electric-Powered Pressure Washer With Natural Gas-Fueled Water Heater: Requires 208 volt, 3-phase power
- Quick Kleen 720,000 BTU Burner System (Must Be Vented Properly If Used Indoors)
- Slide-out tray makes maintenance simple; jets have 6 oxygen orifice inlets to ensure maximum burn & minimize CO
- Adjustable thermostat for efficiency, dependability & serviceability
- NEMA 4 Water-Tight Control Panel & Quick-Adjust Air Flow Vents: Hinged cover provides easy service access; vents maximize burner efficiency by easily adjusting the air flow
- Tip-Ahead Shroud With Integrated Belt Guard
- Loosen the T-Nuts on both sides of the unit & pull the shroud forward for fast motor & pump access
- Belt guard is integrated into the design of the shroud for maximum serviceability & safety
- 20-HP Totally Enclosed, Fan Cooled, Full Frame 1750 RPM Electric Motor: High efficiency motor equipped with 1.25 service factor to meet demand
- General Pump Triplex Plunger Pump With Auto-Stop: Produces up to 8 GPM at 3600 PSI; high volume gets big jobs done faster
- Belt Drive With Torsion Bar Spring-Loaded Belt Tensioner: Large diameter pulleys are used to reduce belt wear; easily accessed under the shroud
- Rugged 11-Gauge & 1/4" Steel, Fully Welded Steel Frame: Powder-coated finish helps protect against rust & corrosion
- Also Included:: Gun & wand assembly, 50 feet of high pressure hose, high pressure chemical injection, 5 nozzles & poly float tank
Specifications:
- Grade: Commercial
- Water Temperature: Hot
- Flow Rate: 8 GPM
- Maximum Water Pressure: 3600 PSI
- Frame Type: Stationary
- CARB Approved
- Warranty: 1 Year Commercial, 1 Year Consumer, 5 Year Commercial Pump, and 5 Year Consumer Pump
Dimensions:
- Height: 56"
- Width: 33"
- Length: 70"
- Product Weight: 1419 lbs
- Hose Length: 50"
- Hose Diameter: 3/8"
Engine and Motor Specifications:
- Horsepower: 20 HP
- Motor: Continuous Duty
- Voltage: 208 Volts
- Electrical Phases: 3-Phase
- Fuel Type: Electric
- Burner Fuel Type: Natural Gas
Dimensions and Measurements
Flow Rate (GPM) | 8 |
Height | 56 in. |
Hose Diameter | 0.375 in. |
Hose Length (Feet) | 50 ft. |
Length | 70 in. |
Product Weight | 1419 lbs. |
Water Pressure (Max) | 3600 PSI |
Width | 33 in. |
Dimensions and Measurements
Flow Rate (GPM) | 8 |
Height | 56 in. |
Hose Diameter | 0.375 in. |
Hose Length (Feet) | 50 ft. |
Length | 70 in. |
Product Weight | 1419 lbs. |
Water Pressure (Max) | 3600 PSI |
Width | 33 in. |
Included Components
Temperature Control | Yes |
Included Components
Temperature Control | Yes |
Characteristics and Features
Burner Fuel Type | Natural Gas |
Chemical Injection Type | Down-Stream |
Frame Type | Stationary |
Hose Connection Type | Quick-Connect |
Hose Material | Rubber |
Motor | AC Induction |
Nozzles | Quick Connect Tips (5) |
Pump Brand | General |
Pump Type | Triplex Plunger |
Spray Gun Connection | Quick-Connect |
Wand Type | Single Wand |
Characteristics and Features
Burner Fuel Type | Natural Gas |
Chemical Injection Type | Down-Stream |
Frame Type | Stationary |
Hose Connection Type | Quick-Connect |
Hose Material | Rubber |
Motor | AC Induction |
Nozzles | Quick Connect Tips (5) |
Pump Brand | General |
Pump Type | Triplex Plunger |
Spray Gun Connection | Quick-Connect |
Wand Type | Single Wand |
Electrical and Operational Information
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 20 |
Voltage | 208 |
Water Temperature | Hot |
Electrical and Operational Information
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 20 |
Voltage | 208 |
Water Temperature | Hot |
Warranty and Product Information
CARB approved | Yes |
Manufacturer Warranty | 1 Year Commercial, 1 Year Consumer, 5 Year Commercial Pump, 5 Year Consumer Pump |
Warranty and Product Information
CARB approved | Yes |
Manufacturer Warranty | 1 Year Commercial, 1 Year Consumer, 5 Year Commercial Pump, 5 Year Consumer Pump |
