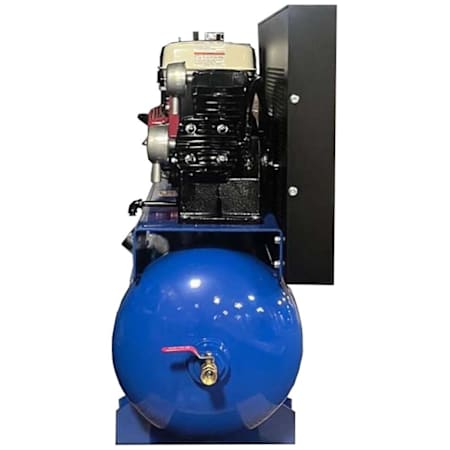

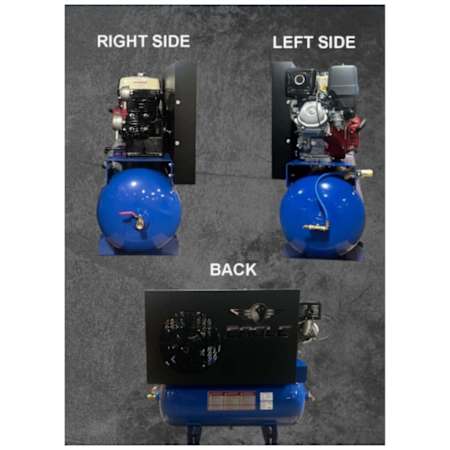

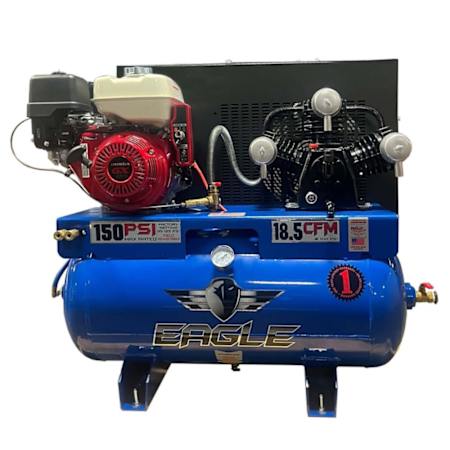

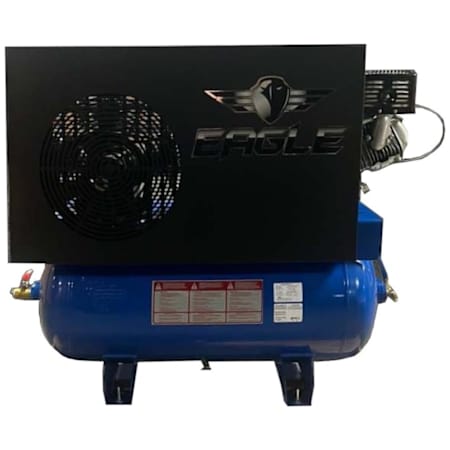

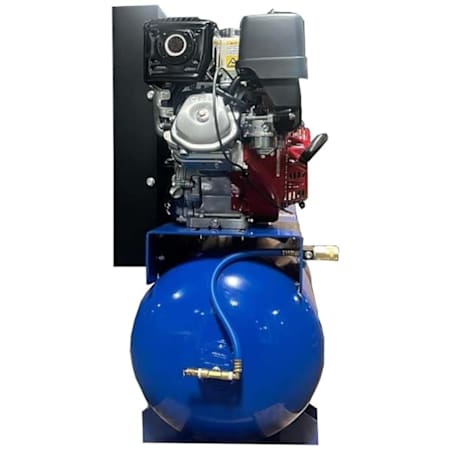

Eagle 9 HP 30 Gal 150 Max PSI Two-Stage Truck Mount Gas Reciprocating Air Compressor with Electric Start Honda Engine
Model: 9G30TRKE-H|Item: bci5120457
$2,999.00
10 In Stock
Details
Product Information:
- **Due To Product Issue Unit Will Be Occasionally Built On A Black Tank If Necessary**

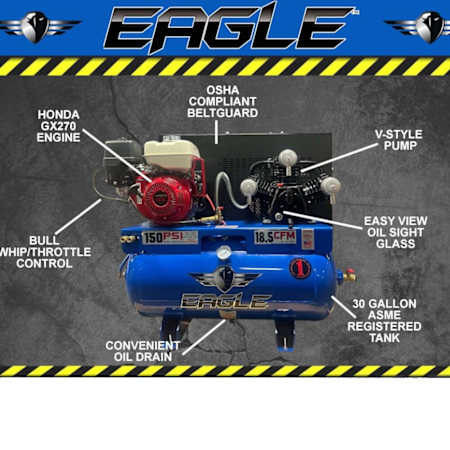

- Heavy Duty Truck Mounted Two Stage Compressor
- Sturdy and reliable air pressure wherever you need it
- Ideal for jobsite needs and mobile service applications
- Honda GX 270 Commercial-Grade OHV Engine w/ Electric Start
- Idle control reduces cost and excessive wear & tear
- Quieter performance, lower fuel consumption & low vibrations
- Ensures dependable starting every time (Battery & Cables Not Included)

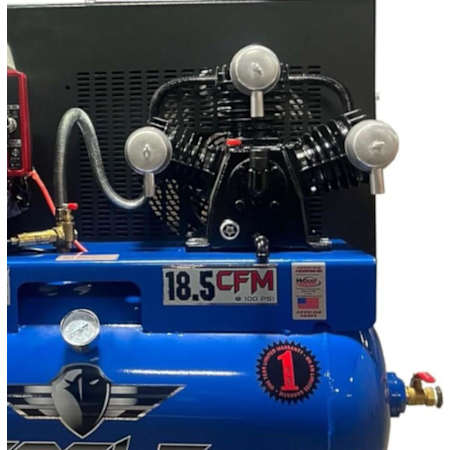

- Solid Cast Iron 2-Stage Pump
- Ideal for service trucks & contractors running multiple tools
- Individual removable cylinders for smoother cooler operation & easy maintenance
- "V" Design
- Easy view oil sight gauge
- High efficiency reed valves for maximum performance
- Minimizes vibration, improves cooling, extends compressor life
- Efficient Heat Removal Pulley-Fan: Provides cooler running and longer life
- Metal Air Filters With "Auto Drop" Feature
- Provides added protection from dust and dirt
- Extends compressor life, easy to maintain
- 30 Gallon ASME Tank
- Rated to 200 PSI for safety
- Convenient oil drain on front of unit
- Sturdy metal belt guard protects the belt & the user
- 1 Year Factory Warranty: Warranty extends to 2 years w/ purchase of Eagle service kit EA-SKG016-X
Specifications:
- Certifications: ASME
- Fuel Type: Gas
- Height: 37"
- Width: 19"
- Length: 41"
- Product Weight: 400 lbs
- Warranty: 1 Year Commercial, 1 Year Residential, 3 Year Commercial Engine, and 3 Year Residential Engine
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 30
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 19
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Auto Idle Mode Included
- 270 CC
- Honda GX
- Horsepower: 9 HP
Dimensions and Measurements
CFM | 18.5 |
Height | 37 in. |
Length | 41 in. |
Product Weight | 400 lbs. |
Width | 19 in. |
Dimensions and Measurements
CFM | 18.5 |
Height | 37 in. |
Length | 41 in. |
Product Weight | 400 lbs. |
Width | 19 in. |
Included Components
Battery Included | No |
Included Components
Battery Included | No |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Auto Idle Mode | Yes |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda GX |
Engine Low Oil Shutdown | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Truck Mount |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 30 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Auto Idle Mode | Yes |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda GX |
Engine Low Oil Shutdown | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Truck Mount |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 30 |
Tank Type | Hot Dog |
Electrical and Operational Information
Cubic Capacity | 270 cc |
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 9 |
Maximum Operating Pressure (PSI) | 150 |
Stages | Two-Stage |
Starting System | 12-Volt Key Start w/ Recoil |
Electrical and Operational Information
Cubic Capacity | 270 cc |
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 9 |
Maximum Operating Pressure (PSI) | 150 |
Stages | Two-Stage |
Starting System | 12-Volt Key Start w/ Recoil |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential, 3 Year Commercial Engine, 3 Year Residential Engine |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential, 3 Year Commercial Engine, 3 Year Residential Engine |
