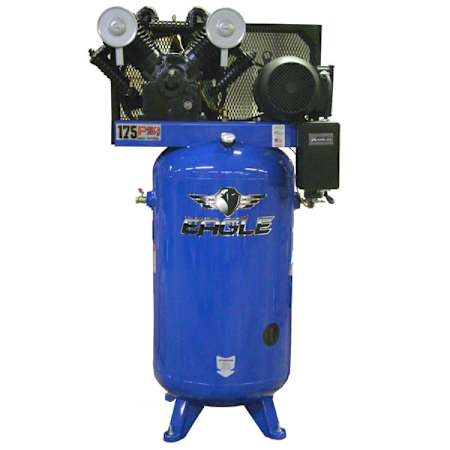

Eagle 7.5 HP 80 Gal 175 Max PSI 28 CFM Two-Stage Stationary Electric (208, 230 Volt 1 Phase) Reciprocating Air Compressor

Product Information:

• Rugged Compressor With Cast Iron Cylinders: "V" design minimizes vibration, improves cooling, extends life


• Individual & Removable Cylinders
  • Smoother & cooler operation for optimum durability
  • Heavy duty pressure switch has on/ off control


• Thermally Protected 7.5 HP Single Phase Electric Motor: Requires a 30 Amp circuit; magnetic starter included


• Metal Air Filters With "Auto Drop" Features: Helps compressor run quietly


• 80 Gallon ASME Air Tank Rated To 175 PSI
  • Convenient oil drain on front of unit for easy maintenance
  • Oil sight glass lets you check level at a glance
  • 3/4" ball valve integrates easily into your system


• High Efficiency Reed Valves: Provide maximum performance: 28 CFM at 100 PSI


• Efficient Heat Removal From Pulley Fan: Cooler running & longer compressor life


• 1 Year Factory Warranty
  • Extends to 2 years with Maintenance Kit added at time of purchase
  • Receipts are required for all warranty service



Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 66"
• Width: 35"
• Length: 23"
• Product Weight: 452 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included

Tank Specifications:

• Tank Outlet Size: 3/4"
• Tank Size: 80

Pump Specifications:

• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 28
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 7.5 HP
• Amperage: 30A
• Voltage: 208, 230V
• Voltage: 208, 230V
