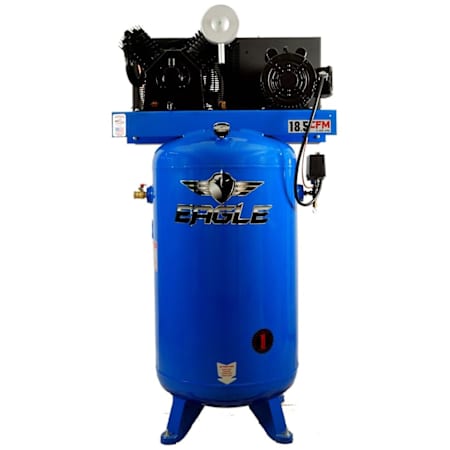

Eagle 5 HP 80 Gal 200 Max PSI Two-Stage Stationary Electric (208, 230 Volt 1 Phase) Reciprocating Air Compressor
Model: 5180V2-CS|Item: bci5120846
$2,703.75
20 In Stock
Details
Product Information:
- Rugged 2 Stage Compressor With Cast Iron Cylinders: Built to work hard and last a long time
- "V" Design: Minimizes vibration, improves cooling, extends compressor life
- Individual & Removable Cylinders: For smoother & cooler operation
- Heavy Duty Pressure Switch: With convenient on/off control
- Metal Air Filters With "Auto Drop" Feature: Extends compressor life, easy to maintain
- 208/230V Single Phase Motor: Thermally protected
- Efficient Heat Removal From Pulley Fan: Promotes cooler running & longer life
- Sturdy Metal Belt Guard
- Protects you and the belt
- Outlet valve included
- 1 year Factory Warranty
- Extends to 2 years with Maintenance Kit added at time of purchase
- Receipts are required for all warranty service
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 69"
- Width: 24"
- Length: 35"
- Product Weight: 450 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1"
- Tank Size: 80
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 19
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 5 HP
- Amperage: 25.5A
- Voltage: 208, 230V
- Voltage: 208, 230V
Dimensions and Measurements
CFM | 18.5 |
Height | 69 in. |
Length | 35 in. |
Product Weight | 450 lbs. |
Width | 24 in. |
Dimensions and Measurements
CFM | 18.5 |
Height | 69 in. |
Length | 35 in. |
Product Weight | 450 lbs. |
Width | 24 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 25.5 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 200 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208, 230 |
Electrical and Operational Information
Amperage | 25.5 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 200 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208, 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
