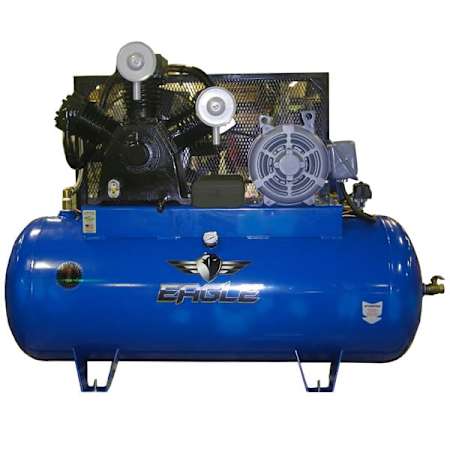

Eagle 15 HP 120 Gal 200 Max PSI Two-Stage Stationary Electric (230 Volt 3 Phase) Reciprocating Air Compressor
Model: 153120H2-MS230|Item: bci5120687
$5,849.11
10 In Stock
Details
Product Information:
- Rugged Compressor With Cast Iron Cylinders: "V" design minimizes vibration, improves cooling, extends life
- Individual & Removable Cylinders
- Smoother & cooler operation for optimum durability
- Heavy duty pressure switch has on/ off control
- Thermally Protected 15-HP 3 Phase Electric Motor: Requires a 38.8 Amp circuit; magnetic starter included
- Metal Air Filters With "Auto Drop" Features: Helps compressor run quietly
- 120 Gallon ASME Air Tank Rated To 200 PSI
- Convenient oil drain on front of unit for easy maintenance
- Oil sight glass lets you check level at a glance
- High Efficiency Reed Valves: Provide maximum performance: 45 CFM at 100 PSI
- Efficient Heat Removal From Pulley Fan: Cooler running & longer compressor life
- Sturdy Metal Belt Guard: Protects both the belt & the operator
- Outlet Valve Included: 1" ball valve integrates easily into your system
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 56-1/2"
- Width: 27"
- Length: 73"
- Product Weight: 972 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1"
- Tank Size: 120
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 45
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 15 HP
- Amperage: 38.8A
- Voltage: 230V
- Voltage: 230V
Dimensions and Measurements
CFM | 45 |
Height | 56.5 in. |
Length | 73 in. |
Product Weight | 972 lbs. |
Width | 27 in. |
Dimensions and Measurements
CFM | 45 |
Height | 56.5 in. |
Length | 73 in. |
Product Weight | 972 lbs. |
Width | 27 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1" |
Tank Size | 120 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1" |
Tank Size | 120 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 38.8 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 15 |
Maximum Operating Pressure (PSI) | 200 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 230 |
Electrical and Operational Information
Amperage | 38.8 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 15 |
Maximum Operating Pressure (PSI) | 200 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
