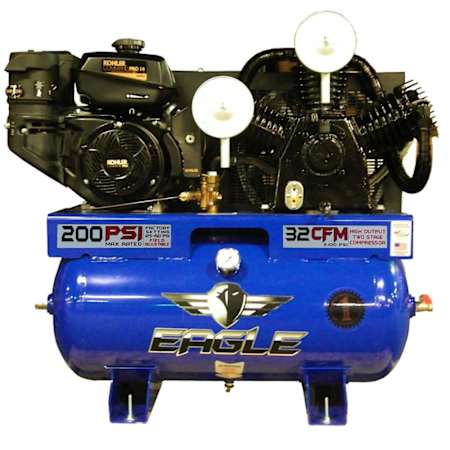

Eagle 14 HP 30 Gal 200 Max PSI Two-Stage Truck Mount Gas Reciprocating Air Compressor

Product Information:

• Truck Mounted 2 Stage Unit Produces 32 CFM @ 100 PSI
  • Ideal for contractor jobsite needs and emergency mobile service
  • Sturdy and reliable air pressure wherever you need it
  • Perfect for roofing and framing jobs


• 14-HP Kohler Professional Grade Electric Start Engine
  • Quad-Clean 4-stage air filtration system
  • Oil Sentry automatic low oil engine shutdown system
  • Warm air intake system for cold weather operation


• Rugged Removable & Individual Cast Iron Cylinders
  • Provides cooler operation & easy maintenance
  • High efficiency reed valves for maximum performance
  • Efficient heat removal from fly wheel


• "V" Design
  • Minimizes vibration, improves cooling, extends compressor life
  • High efficiency reed valves for maximum performance
  • Large bore pistons give the ability to run at less RPM


• Engine Idle Control: Reduces operating costs & excessive wear


• Metal Air Filters w/ Automotive Drop-In Style Elements
  • Extends compressor life, easy to maintain
  • Provides added protection from dust and dirt
  • Sturdy metal belt guard protects the belt & the user


• 30 Gallon ASME Tank
  • Rated to 200 PSI for safety
  • Easy view oil sight gauge
  • Convenient oil drain on front of unit


• 1 Year Factory Warranty: Warranty extends to 2 years w/ purchase of Eagle Service Kit EA-SKG025-X

Specifications:

• Certifications: ASME
• Fuel Type: Gas
• Height: 40"
• Width: 19"
• Length: 45"
• Product Weight: 401 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included

Tank Specifications:

• Tank Outlet Size: 1/2"
• Tank Size: 30

Pump Specifications:

• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 32
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Auto Idle Mode Included
• Kohler
• Horsepower: 14 HP
