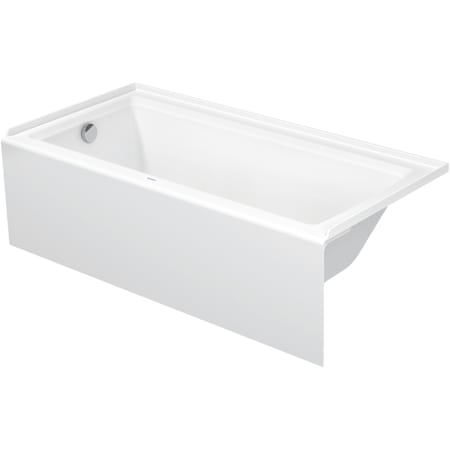

Duravit Architec 66" Three Wall Alcove Acrylic Soaking Tub with Left Drain and Overflow
Model: 700408000000090|Item: bci3938931
from theArchitec Collection
$1,202.86
Finish: White -
7 In Stock
Variation
66 X 32" Left Drain-19" Tall
- 60 X 30" Left Drain-18" Tall$871.16
- 60 X 30 Right Drain -18" Tall$871.16
- 60 X 30" Left Drain-19" Tall$755.51
- 60 X 30" Right Drain-19" Tall$710.44
- 60 X 32" Left Drain-19" Tall$767.00
- 60 X 32" Right Drain-19" Tall$767.00
- 66 X 32" Left Drain-19" Tall$1,202.86
- 66 X 32" Right Drain-19" Tall$1,202.86
66 X 32" Left Drain-19" Tall
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse Tomorrow, October 9th
-Details
Architec, designed by Prof. Frank Huster, combines two classic elements: the circle and the square. Its wide range of sinks, shower bases, and alcove bathtubs pair durability with geometric style. Ideal for commercial and residential spaces, Architec proves that practical solutions can still look refined and feel luxurious.
Duravit 700408-L-19TALL Features:
- Covered under Duravit's 5 year warranty and 5 year commercial warranty
- Acrylic construction maintains heat longer and is easy to clean
- Soaking bath tub for a calm bathing experience
- Installs in a three wall alcove configuration
- Left drain placement
- Drain assembly sold separately
- Equipped with overflow assembly permitting the user to enjoy a deep soak without worrying about spillage
- Integral tiling flanges for ease of installation and waterproofing

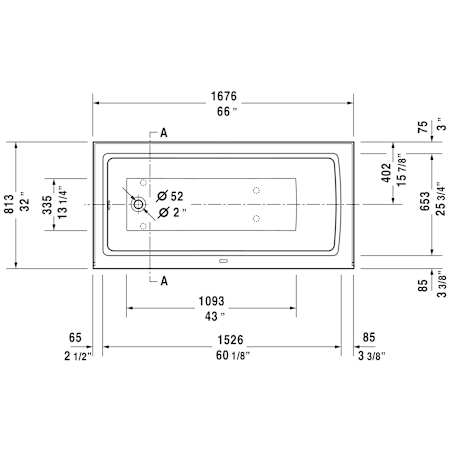

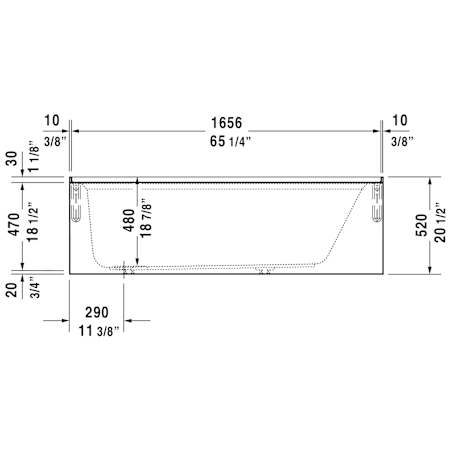

Tub Specifications:
- Overall Height: 18-1/2" (top to bottom)
- Overall Length: 66" (left to right)
- Overall Width: 32" (front to back)
- Maximum Water Capacity: 39 gallons
- Water Depth: 14-3/4"
Specifications
Key Specifications
- Height18.5 in.
- Length66 in.
- Width32 in.
- Installation TypeThree Wall Alcove
- MaterialAcrylic
Dimensions and Measurements
Capacity (Gallons) | 39 |
Depth | 18.25 in. |
Height | 18.5 in. |
Length | 66 in. |
Nominal Length | 66 in. |
Nominal Width | 32 in. |
Overflow Height | 16.33 in. |
Product Weight | 105.8 lbs. |
Water Depth | 14.75 in. |
Width | 32 in. |
Dimensions and Measurements
Capacity (Gallons) | 39 |
Depth | 18.25 in. |
Height | 18.5 in. |
Length | 66 in. |
Nominal Length | 66 in. |
Nominal Width | 32 in. |
Overflow Height | 16.33 in. |
Product Weight | 105.8 lbs. |
Water Depth | 14.75 in. |
Width | 32 in. |
Included Components
Blower | No |
Drain Assembly Included | No |
Faucet Included | No |
Handshower Included | No |
Light Included | No |
Tile Flange | Yes |
Included Components
Blower | No |
Drain Assembly Included | No |
Faucet Included | No |
Handshower Included | No |
Light Included | No |
Tile Flange | Yes |
Characteristics and Features
Accepts Deck Mount Faucet | No |
Apron Front | Yes |
Drain Placement | Left |
Installation Type | Three Wall Alcove |
Material | Acrylic |
Number Of Bathers | 1 |
Overflow | Yes |
Slip Resistant | No |
Theme | Traditional |
Tub Shape | Rectangular |
Characteristics and Features
Accepts Deck Mount Faucet | No |
Apron Front | Yes |
Drain Placement | Left |
Installation Type | Three Wall Alcove |
Material | Acrylic |
Number Of Bathers | 1 |
Overflow | Yes |
Slip Resistant | No |
Theme | Traditional |
Tub Shape | Rectangular |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | Yes |
Collection | Architec |
Commercial Warranty | 5 Years |
Country Of Origin | Egypt |
Manufacturer Warranty | 5 Years |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | Yes |
Collection | Architec |
Commercial Warranty | 5 Years |
Country Of Origin | Egypt |
Manufacturer Warranty | 5 Years |
