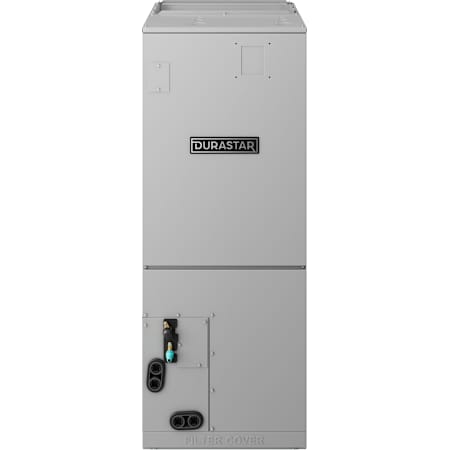

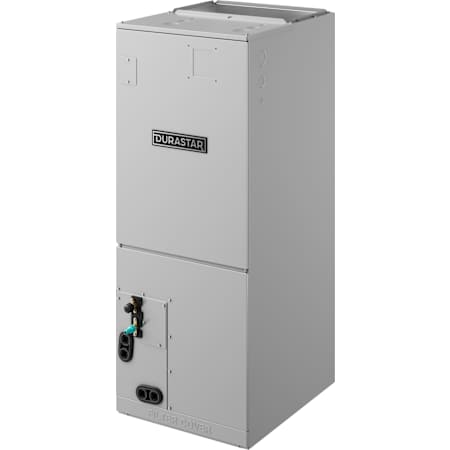

Durastar 24,000 BTU Cooling / 24,000 BTU Heating Mini Split Ducted Air Handler

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Indoor evaporator unit only, outdoor condenser required for proper functionality. For questions or assistance building a multi-zone system, please call (855) 484-3292 to speak to one of our experts.

Durastar DRUM1824S2A Features:

• A2L Compatible
• HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
• Communicating when using 7-Day Programmable Thermostat Included
• 24V Thermostat Compatible
• Multi-positional Configuration
• Constant Volume Variable Speed Motor
• Filter Rack Included
• All-aluminum Coil with Anti-corrosion Fin Coating
• Designed for Sustainability with Low GWP and Refrigerant Detection System

Specifications:

• Zone Cooling BTU: 24,000
• Zone Heating BTU: 24,000
• Depth: 20-7/8"
• Height: 45"
• Width: 21"
• Voltage: 115, 208, 230V

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
