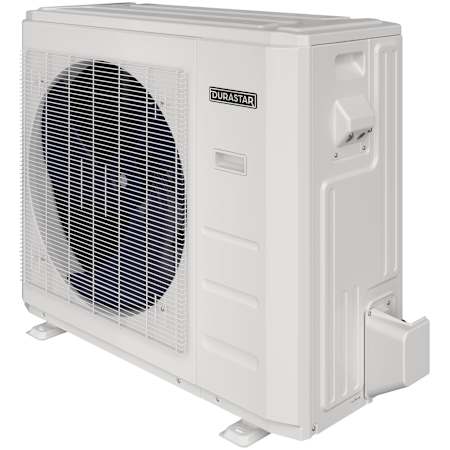

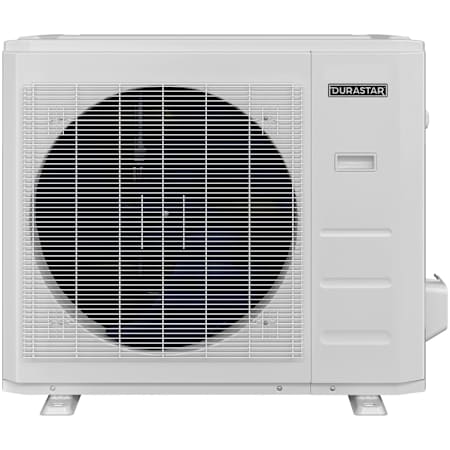

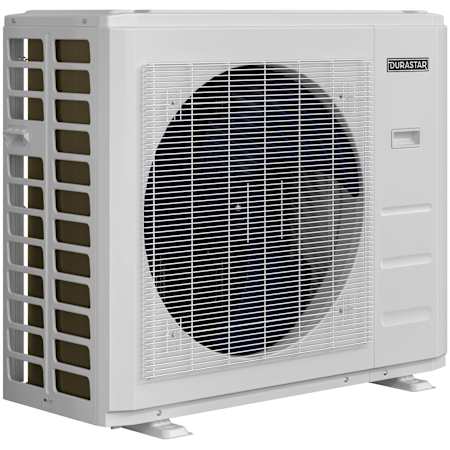

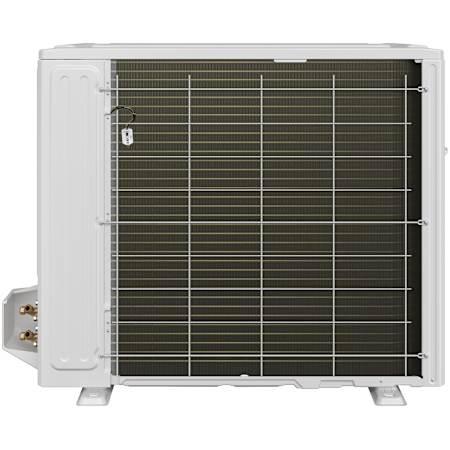

Durastar 30,000 BTU Cooling / 30,000 BTU Heating 17 SEER2 Multi Zone Mini Split Condenser Unit

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Outdoor condenser unit only, indoor evaporator unit(s) required for proper functionality. For questions or assistance building a multi-zone system, please call (855) 484-3292 to speak to one of our experts.

Features:

• A2L Compatible
• Operational temperature down to -13 Deg F
• Included base pan heater
• Variable speed inverter compressor
• Slim design
• 24V Compatible
• Designed for Sustainability with Low GWP and Refrigerant Detection System

Product Technologies:

• Anti-Corrosive Fin Coating: Durastar condensers and indoor units feature Golden Fin Coating, an anti-corrosive fin coating to ensure the longevity, reliability and prevent corrosion this improves its durability

• Quiet Operation: Enjoy reduced electrical and mechanical sound thanks to brushless direct current fan motors

Specifications:

• Cooling BTU Capacity: 30,000
• Heating BTU Capacity: 30,000
• Cooling Area: 1500 Sq. Ft.
• Sound Level: 60 dB
• Liquid Line Connection Size: 3/8"
• Depth: 16-3/16"
• Height: 31-7/8"
• Width: 37-1/4"
• Recommended Breaker Size: 25 A
• Minimum Circuit Ampacity: 22.5 A
• Voltage: 208, 230V

Product Assurance:

• Certifications:
  • ETL
  • UL
• Performance and Efficiency:
  • SEER2: 17
  • HSPF2: 8.5
• Manufacturer Warranty: 7 Year Limited

Required Components:

• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Included): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser

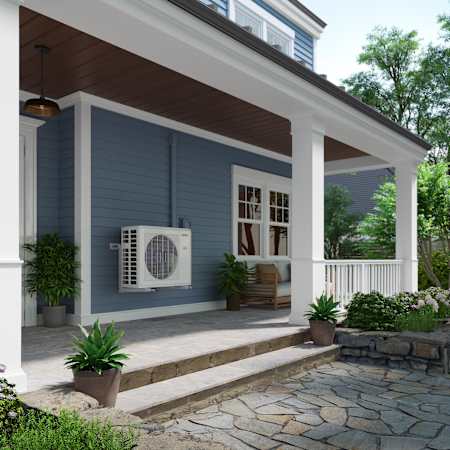

• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris
