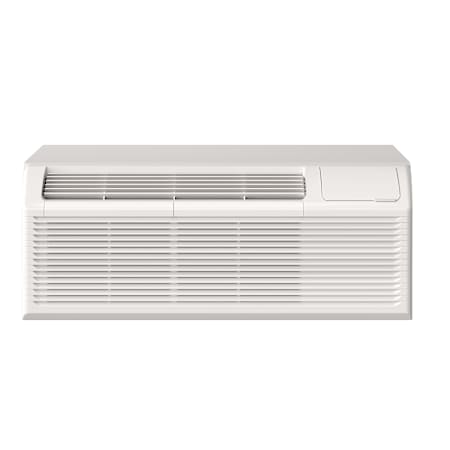

Durastar 7,000 BTU 3.5 kW Electric Heat Packaged Terminal Air Conditioner (208 / 230 Volt)

Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar PTACs are ideal for renovations, remodels and zone-specific heating and cooling needs.

Product Information:

• HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
• Fits standard wall sleeve
• Auto Fan Mode
• Dry Mode
• Fresh Air Vent
• LCDI power cord included
• Automatic room freeze protection at 32°F in an unoccupied room
• 24V Thermostat Compatible
• 5-year limited warranty
• Sleeve and grille sold separately

Special Features:

Intuitive Display
• The DRPTHP07Y32351A has a user-friendly touch pad with easy-to-read LED display that shows set temperature and unit status.
Memory Function
• When there is a power failure, the DRPTHP07Y32351A automatically starts back up with the same control settings it had before power was lost.
Automatic Freeze Protection
• The compressor in the DRPTHP07Y32351A automatically turns off and the indoor fan is turned on when the evaporator temperature gets too low, preventing the evaporator from freezing.
Power Cord Included
• Durastar PTACs are equipped with a LCDI cord for fast and easy installation.
Restart Delay
• Durastar PTACs go into a three-minute delay every time the compressor restarts to prevent short-cycling of the air conditioner, extending the overall life of the compressor.
Washable Filter
• The DRPTHP07Y32351A includes an easy to remove and clean filter, providing a cleaner environment.

Performance:

• BTU Cooling: 7,000
• Cooling BTU Capacity: 7,200
• Electric Heat Capacity: 3.5 kW
• Moisture Removal: 0.7 Pints/Hour
• EER: 13.1
• Cooling Area: 250 to 300 Sq. Ft.

Specifications:

• Voltage: 208, 230V
• Frequency: 60 Hz
• Electrical Phases: 1
• Amperage: 3 A
• Recommended Breaker Size: 25 A
• Refrigerant Type: R-32

Dimensions:

• Height: 16"
• Width: 42"
• Depth: 21"
• Product Weight: 101.4 lbs

Product Assurance:

• Certifications:
  • AHRI
  • UL
• AHRI Reference Number: 213363360
• 1 Year Parts and Labor, 5 Year Sealed System Manufacturer Warranty

(1) NEMA 6-20P
