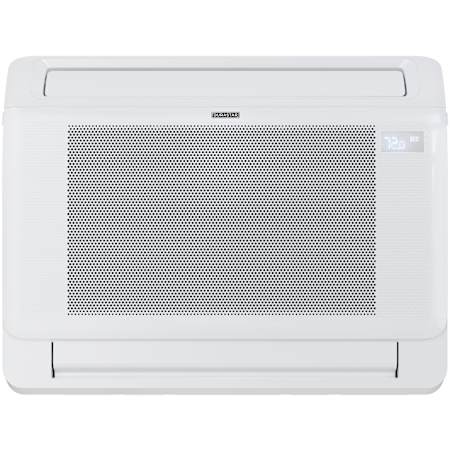

Durastar 16,000 BTU Cooling / 12,500 BTU Heating Mini Split Floor Console Indoor Unit

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Indoor evaporator unit only, outdoor condenser required for proper functionality. For questions or assistance building a multi-zone system, please call (855) 484-3292 to speak to one of our experts.

Features:

• Low ambient heating and cooling down to -13° F
• A2L refrigerant detection system
• Variable speed inverter compressor
• Larger top and bottom air outlets
• Turbo, ECO, Active Clean, Sleep modes and more
• Humidity control
• 46° F freeze protection
• Included base pan heater
• Compatible with DRSTAT101 wired thermostat
• Single zone and multizone compatible
• High efficiency dual-louvered design

Product Technologies:

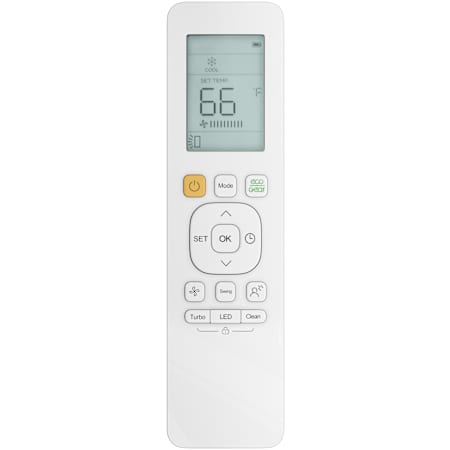

• Wireless Remote Control With "Follow Me" Technology: This function uses the temperature at the remote's location, instead of the indoor unit's location, to optimize the temperature around you and ensure maximum comfort

• Auto Restart: The indoor unit has an auto-restart module that allows the unit to restart automatically and, in the case of a sudden power failure, will restore those setting automatically after power returns

• Anti-Corrosive Fin Coating: Durastar condensers and indoor units feature Golden Fin Coating, an anti-corrosive fin coating to ensure the longevity, reliability and prevent corrosion this improves its durability

• Quiet Operation: Enjoy reduced electrical and mechanical sound thanks to brushless direct current fan motors

Specifications:

• Zone Cooling BTU: 16,000
• Zone Heating BTU: 12,500
• Cooling Area: 800 Sq. Ft.
• Sound Level: 24 to 42 dB
• Depth: 7-7/8"
• Height: 24-7/16"
• Width: 31-1/4"
• Recommended Breaker Size: 15 A
• Minimum Circuit Ampacity: 3 A
• Voltage: 208, 230V

Product Assurance:

• Certifications:
  • AHRI
  • ETL
• Manufacturer Warranty: 7 Year Limited

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
