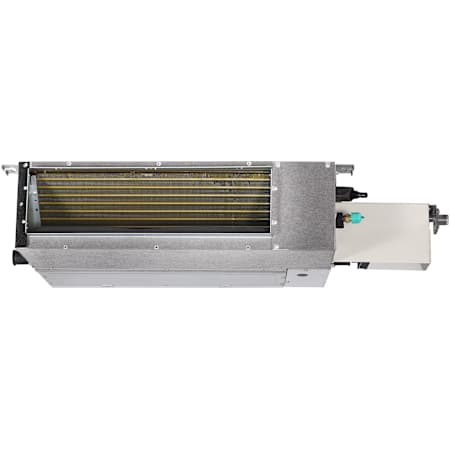

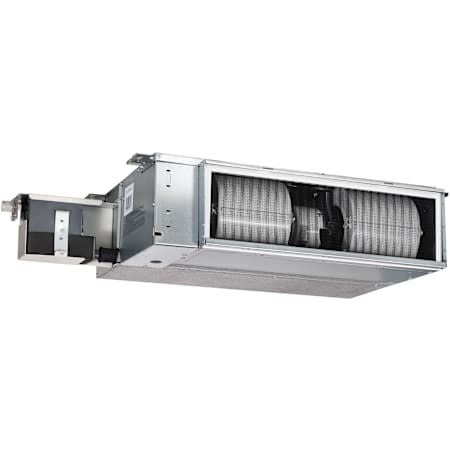

Durastar 12,000 BTU Cooling / 12,500 BTU Heating Mini Split Concealed Duct Indoor Unit

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Indoor evaporator unit only, outdoor condenser required for proper functionality. For questions or assistance building a multi-zone system, please call (855) 484-3292 to speak to one of our experts.

Features:

• Variable Speed Inverter Compressor
• A2L refrigerant detection system
• Horizontal and vertical installation
• External drain pump included (in horizontal installation only)
• Static pressure up to 0.4 in. WC

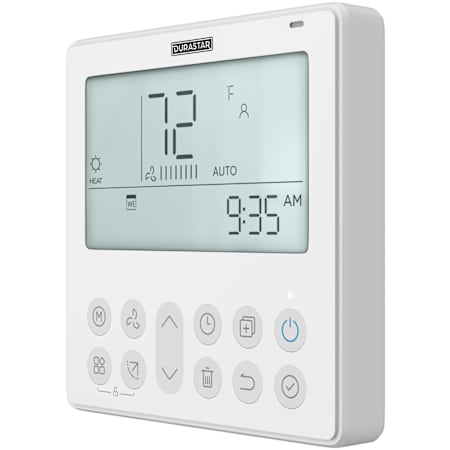

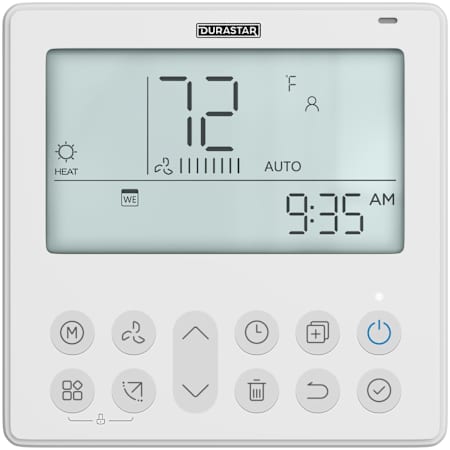

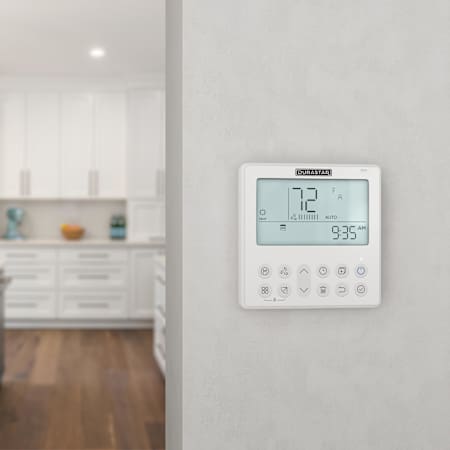

• DRSTAT101 programmable wired thermostat included
• Turbo, ECO, Sleep modes and more
• Low ambient heating down to -13° F and low ambient cooling down to -13° F
• A2L Compatible
• Single zone and multizone compatible
• Included base pan heater
• Designed for Sustainability with Low GWP and Refrigerant Detection System

Product Technologies:

• Anti-Corrosive Fin Coating: Durastar condensers and indoor units feature Golden Fin Coating, an anti-corrosive fin coating to ensure the longevity, reliability and prevent corrosion this improves its durability

• Quiet Operation: Enjoy reduced electrical and mechanical sound thanks to brushless direct current fan motors

Specifications:

• Zone Cooling BTU: 12,000
• Zone Heating BTU: 12,500
• Cooling Area: 600 Sq. Ft.
• Sound Level: 26 to 37 dB
• Depth: 27-9/16"
• Height: 7-7/8"
• Width: 19-15/16"
• Recommended Breaker Size: 15 A
• Minimum Circuit Ampacity: 3 A
• Voltage: 208, 230V

Product Assurance:

• Certifications:
  • AHRI
  • ETL
• Manufacturer Warranty: 7 Year Limited

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
