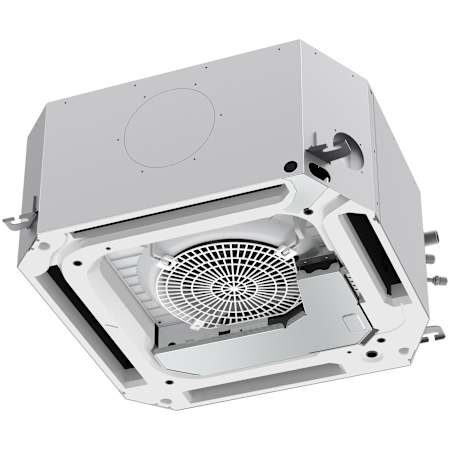

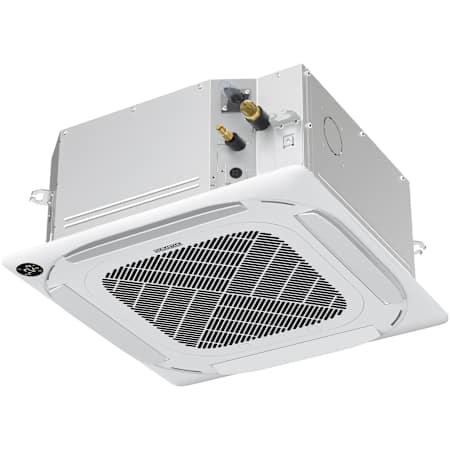

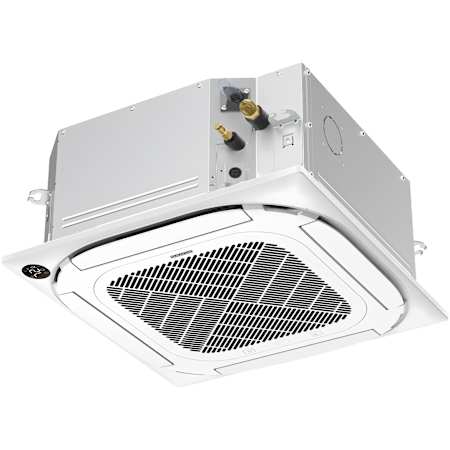

Durastar 12,000 BTU Cooling / 12,000 BTU Heating Mini Split Ceiling Cassette Indoor Unit

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Indoor evaporator unit only, outdoor condenser required for proper functionality. For questions or assistance building a multi-zone system, please call (855) 484-3292 to speak to one of our experts.

Features:

• A2L Compatible
• Single zone and multizone compatible
• Humidity Control
• Turbo, ECO, Active Clean, Sleep modes and more
• Compatible with DRSTAT101 wired thermostat
• Designed for Sustainability with Low GWP and Refrigerant Detection System
• Panel sold separately

Product Technologies:

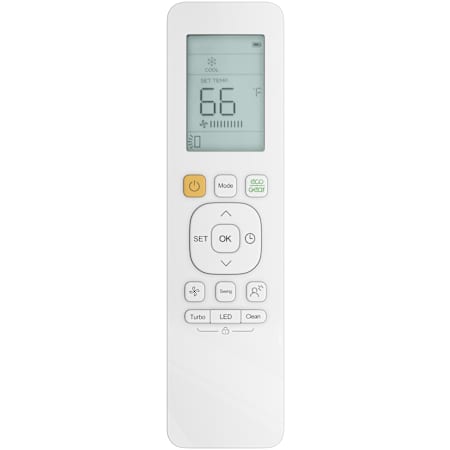

• Wireless Remote Control With "Follow Me" Technology: This function uses the temperature at the remote's location, instead of the indoor unit's location, to optimize the temperature around you and ensure maximum comfort

• Quiet Operation: Enjoy reduced electrical and mechanical sound thanks to brushless direct current fan motors

Specifications:

• Zone Cooling BTU: 12,000
• Zone Heating BTU: 12,000
• Cooling Area: 600 Sq. Ft.
• Sound Level: 24 to 46 dB
• Depth: 22-7/16"
• Height: 9-5/8"
• Width: 22-7/16"
• Recommended Breaker Size: 15 A
• Minimum Circuit Ampacity: 3 A
• Voltage: 208, 230V

Product Assurance:

• Certifications:
  • AHRI
  • ETL
• Manufacturer Warranty: 7 Year Limited

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
