Durastar Sirius Heat Series 48K BTU Cooling / 49K BTU Heating 21.2 SEER2 Two Zone Ceiling Cassette Mini Split System with (1) 18K and (1) 24K BTU Indoor Units
Model: DRA6H48M2A 1-C18 1-C24 1-PANA2 1-PANB1|Item: bci5187666
from theSirius Heat Collection
$13,716.45
Special Order
This package includes the following items
Details
Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar mini-splits are ideal for renovations, remodels and zone-specific heating and cooling needs.
Package Includes:

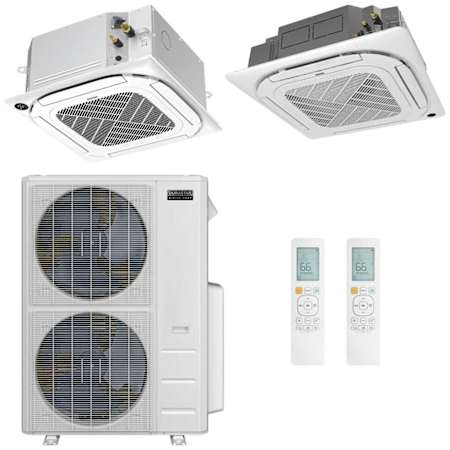

(1) DRA6H48M2A Outdoor Unit, (1) DRAC18F2A-NG Ceiling Cassette Indoor Unit, (1) DRAC24F2A-NG Ceiling Cassette Indoor Unit, (1) DRACPANA2A Ceiling Cassette Panel, and (1) DRACPANB1B Ceiling Cassette PanelRecommended Line Set Sizes (For Indoor Unit Connectivity):
- DRAC18F2A-NG: 1/4" x 1/2" Line Set (Qty 1)
- DRAC24F2A-NG: 3/8" x 5/8" Line Set (Qty 1)
Product Assurance:
- Performance and Efficiency:
- SEER2: 21.2
- HSPF2: 11
- Manufacturer Warranty: 7 Year Limited
Required Components:
- Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
- Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
- Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
- Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
- Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
- Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
- Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris
Component Specifications:
DRA6H48M2A
- Cooling BTU Capacity: 48000 BTU
- Heating BTU Capacity: 49000 BTU
- Zone Capacity: 6
- Depth: 16.3125"
- Height: 52.5"
- Width: 37.5"
- Breaker Requirements: 40A
- Amperage: 37A
- Voltage: 208V, 230V
DRAC18F2A-NG
- Zone Cooling BTU: 18000 BTU
- Zone Heating BTU: 19000 BTU
- Sound Level: 25 to 48 dB
- Liquid Line Connection Size: 1/4"
- Gas Line Connection Size: 1/2"
- Depth: 22.4375"
- Height: 9.625"
- Width: 22.4375"
- Amperage: 3A
- Voltage: 208V, 230V
DRAC24F2A-NG
- Zone Cooling BTU: 24000 BTU
- Zone Heating BTU: 25000 BTU
- Sound Level: 31 to 46 dB
- Liquid Line Connection Size: 3/8"
- Gas Line Connection Size: 5/8"
- Depth: 32.6875"
- Height: 8.0625"
- Width: 32.6875"
- Amperage: 3A
- Voltage: 208V, 230V
