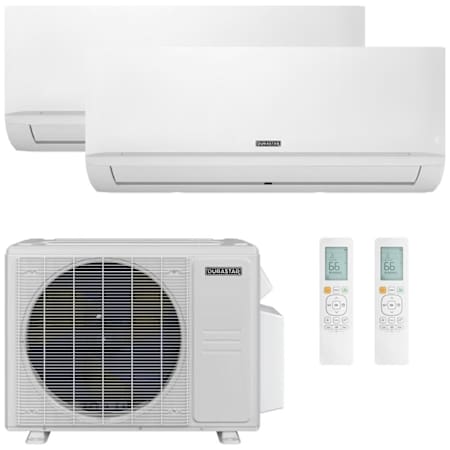

Durastar 18K BTU Cooling / 19K BTU Heating 23 SEER2 Two Zone Wall Mount Mini Split System with (1) 9K and (1) 12K BTU Indoor Units

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar mini-splits are ideal for renovations, remodels and zone-specific heating and cooling needs.

Package Includes:

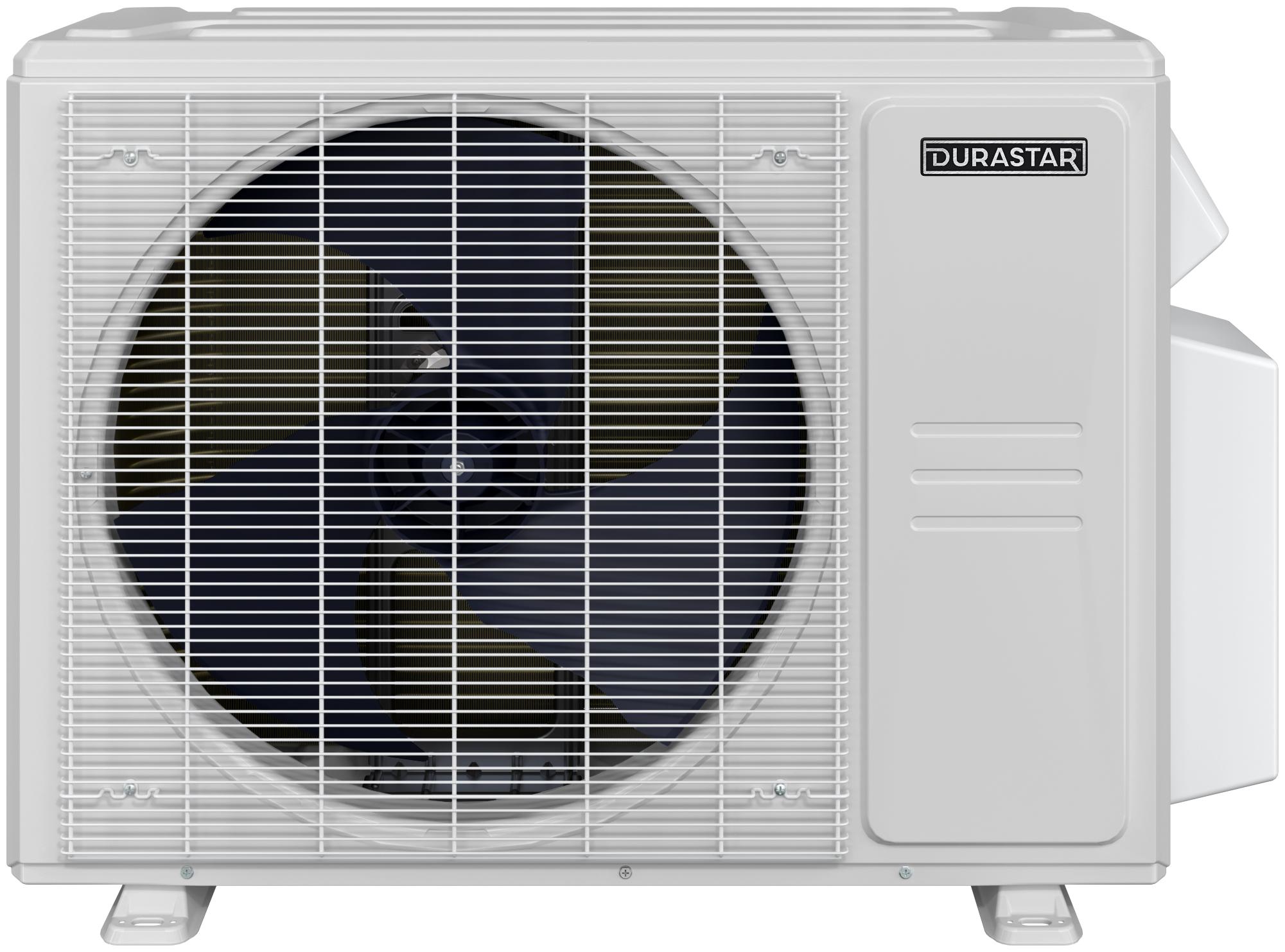

(1) DRA3U18M2A Outdoor Unit, (1) DRAW09F2A Wall Mount Indoor Unit, and (1) DRAW12F2A Wall Mount Indoor Unit

Features:

• Golden Fin Coating: Durastar condensers and indoor units feature Golden Fin Coating, an anti-corrosive fin coating to ensure the longevity, reliability and prevent corrosion this improves its durability


• Quiet Operation: Both the outdoor and indoor units enjoy reduced electrical and mechanical sound thanks to their brushless direct current fan motors


• Washable Filter: With a washable filter, the indoor unit features easy, low cost maintenance


• Auto Changeover: Set it and forget it. With Durastar's Auto Changeover feature, you can set the temperature and it will automatically switch between heating and cooling to maintain your temperature


• Eco/Gear Mode: With Eco/Gear Mode set in cooling mode, energy consumption of the indoor unit is reduced in three tiers ranging from 10-50%


• Timer Function: Set your unit based on your schedule with the Timer function


• Turbo Mode: Get comfortable fast with Turbo Mode. This feature enables the unit to reach your set temperature quickly by controlling the fan speed automatically


• Swing/Gentle Feature: The Durastar indoor unit with Swing/Gentle feature allows for the air flow to be circulated and directed around the room


• Sleep Mode: Help reduce your energy consumption with Sleep Mode. This mode adjusts the temperature in minor increments and automatically turns off after 8 hours and returns to normal operation


• 10 Year Warranty: Durastar stands behind their product with a hassle-free 10 year limited parts warranty


• Third-Party Thermostat Interface: The DR24VINT2 interface works with Durastar indoor units, enabling third-party Wi-Fi compatible thermostats to control them. It's compatible with various 24V Wi-Fi thermostat brands like Nest, Ecobee, Honeywell, and Proselect for wireless control

Recommended Line Set Sizes (For Indoor Unit Connectivity):

• DRAW09F2A: 1/4" x 3/8" Line Set (Qty 1)
• DRAW12F2A: 1/4" x 3/8" Line Set (Qty 1)

Product Assurance:

• Performance and Efficiency:
  • SEER2: 21
  • HSPF2: 10
• Manufacturer Warranty: 7 Year Limited

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Component Specifications:
