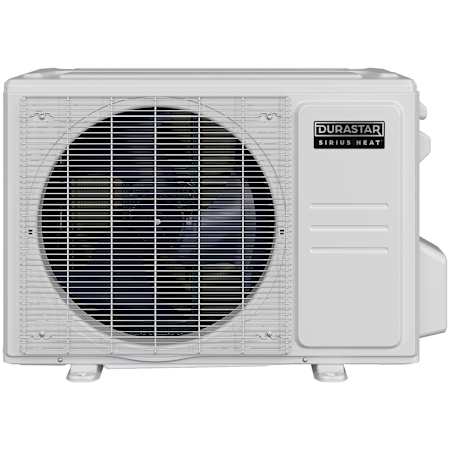

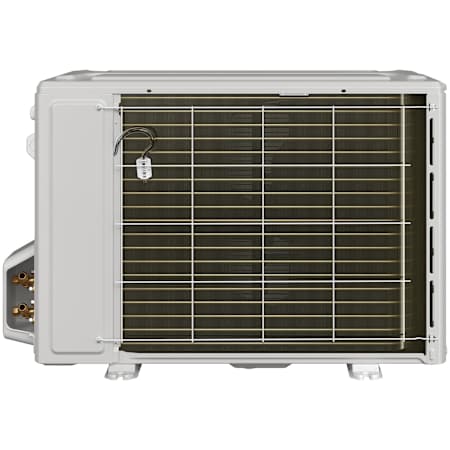

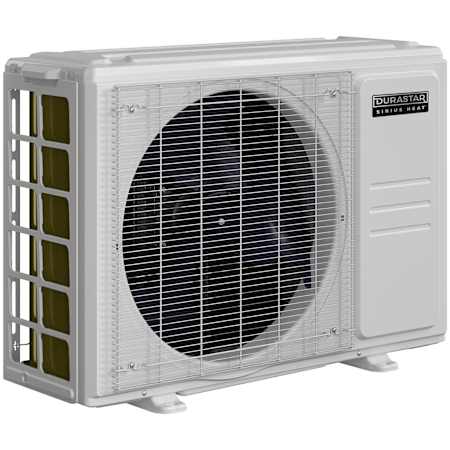

Durastar 6,000 BTU Cooling / 7,000 BTU Heating 25.3 SEER2 Single Zone Mini Split Condenser Unit

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Outdoor condenser unit only, indoor evaporator unit(s) required for proper functionality. For questions or assistance building a multi-zone system, please call (855) 484-3292 to speak to one of our experts.

Features:

• Up to 100% heating capacity at 0° F and low ambient heating and cooling down to -22° F
• Variable speed inverter compressor
• Turbo, ECO, Active Clean, Sleep modes and more
• 46° F freeze protection
• Included base pan heater
• Compatible with DRSTAT101 wired thermostat
• A2L Compatible
• Designed for Sustainability with Low GWP
• Refrigerant Detection System

Product Technologies:

• Wireless Remote Control With "Follow Me" Technology: This function uses the temperature at the remote's location, instead of the indoor unit's location, to optimize the temperature around you and ensure maximum comfort

• Auto Restart: The indoor unit has an auto-restart module that allows the unit to restart automatically and, in the case of a sudden power failure, will restore those setting automatically after power returns

• Anti-Corrosive Fin Coating: Durastar condensers and indoor units feature Golden Fin Coating, an anti-corrosive fin coating to ensure the longevity, reliability and prevent corrosion this improves its durability

• Quiet Operation: Enjoy reduced electrical and mechanical sound thanks to brushless direct current fan motors

Specifications:

• Cooling BTU Capacity: 6,000
• Heating BTU Capacity: 7,000
• Zone Capacity: 1
• Cooling Area: 300 Sq. Ft.
• Sound Level: 53 dB
• Liquid Line Connection Size: 1/4"
• Depth: 11-15/16"
• Height: 21-7/8"
• Width: 30-1/8"
• Recommended Breaker Size: 15 A
• Minimum Circuit Ampacity: 12 A
• Voltage: 208, 230V

Product Assurance:

• Certifications: ETL
• Performance and Efficiency:
  • SEER2: 25.3
  • HSPF2: 14.6
• Manufacturer Warranty: 7 Year Limited

Required Components:

• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Included): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser

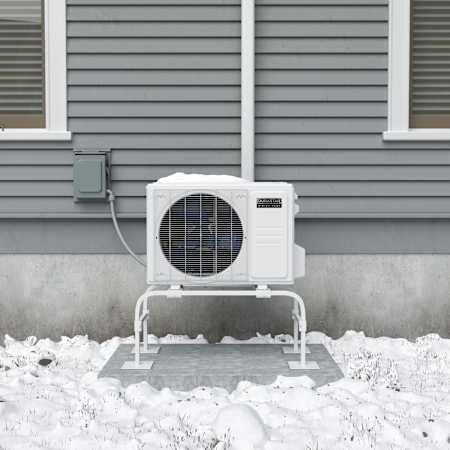

• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris
