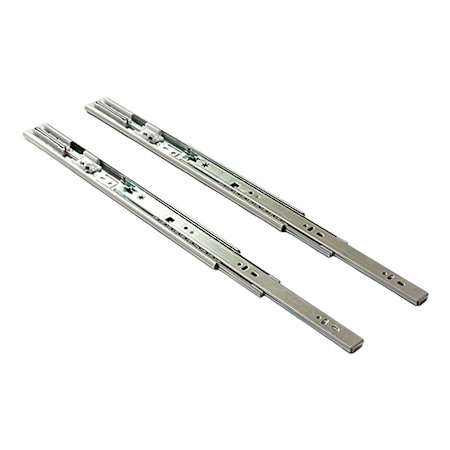

DTC D Series 12 Inch Full Extension Ball Bearing Drawer Slides with 100 Pound Weight Capacity - Pair
Model: 45.96.12-D|Item: bci4705579
from theD Collection
$4.40
Finish: Nickel -
Special Order
Details
12" Standard Full Extension Zinc Side Mount Ball Bearing Drawer Slide - 100 Lbs Weight Rating
Features:
- Designed to support up to 100 pounds of weight
- Provides easy access to the drawer with full extension slides
- Lever allows for quick and easy removal of the drawer from the cabinet members
- Intended for use in face frame and panel (frameless) cabinets
- Covered by DTC's limited lifetime manufacturer warranty
Specifications:
- Drawer Length: 13"
- Slide Length: 12"
- Extension Type: Full Extension
- Slide Type: Ball Bearing
- Weight Capacity: 100 lbs.
- Material: Steel
- Quantity: 2
- Country of Origin: China
Manufacturer Resources
Specification SheetDimensions and Measurements
Drawer Length | 13 in. |
Extension | 11.97 in. |
Length | 12 in. |
Max Capacity (Pounds) | 100 lbs. |
Nominal Length | 12 in. |
Product Weight | 2 lbs. |
Quantity | 2 |
Dimensions and Measurements
Drawer Length | 13 in. |
Extension | 11.97 in. |
Length | 12 in. |
Max Capacity (Pounds) | 100 lbs. |
Nominal Length | 12 in. |
Product Weight | 2 lbs. |
Quantity | 2 |
Characteristics and Features
Adjustable | No |
Cabinet Type | Face Frame, Panel (Frameless) |
Detent | No |
Disconnect Style | Lever |
Extension Type | Full Extension |
Installation Type | Side Mount |
Material | Steel |
Push to Open | No |
Self Closing | No |
Slide Type | Ball Bearing |
Soft Close | No |
Characteristics and Features
Adjustable | No |
Cabinet Type | Face Frame, Panel (Frameless) |
Detent | No |
Disconnect Style | Lever |
Extension Type | Full Extension |
Installation Type | Side Mount |
Material | Steel |
Push to Open | No |
Self Closing | No |
Slide Type | Ball Bearing |
Soft Close | No |
Warranty and Product Information
Approved for Commercial Use | No |
Collection | Magic-Star Plus |
Country Of Origin | China |
Manufacturer Warranty | Limited Lifetime |
Warranty and Product Information
Approved for Commercial Use | No |
Collection | Magic-Star Plus |
Country Of Origin | China |
Manufacturer Warranty | Limited Lifetime |
