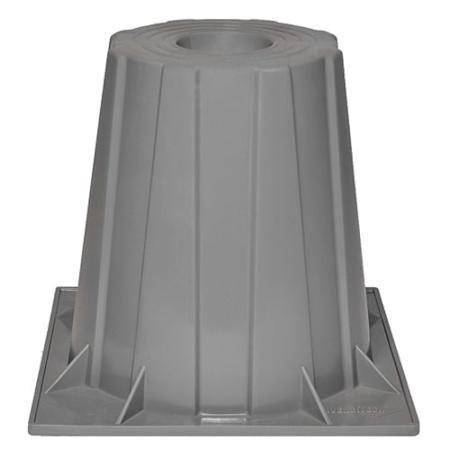

DiversiTech 6 In. Riser for Air Conditioner or Heater Heat Pump

Product Information:

• Directions - Simply peel the release liner from the mastic before placing the Heat Pump/Condenser Riser and equipment.
• Maximum Point Load - A HPR-3-2P or HPR-6-2P Heat Pump/Condenser Riser can handle a point load, applied to one square inch area in center of footpad recess on top of single HPR, of less than 560 pounds with no failure.
• Maximum Uniform Load - A HPR-3-2P or HPR-6-2P Heat Pump/Condenser Riser can handle a uniform load of 2000 pounds with no failure.
• Advantages - Two-piece, heavy duty plastic unit is manufactured in three heights - 3", 6" and 12" with an optional 4" extension. One-piece 6S model employs structural computer generated design for strength.
• Composition - High-pressure injection molded polypropylene. Butyl mastic on the top and bottom guarantees no slipping.
• Purpose - Heat Pump/Condenser Risers provide a sturdy and stable solution for adding elevation to a condenser, heat pump, air handler, or other equipment by allowing airflow which prevents corrosion caused by direct ground contact.
• Application - Heat Pumps and Condenser units
• The manufacturer model number(s): Diversitech HPR-6

Specifications:

• Type: Equipment Pads and Risers
