The Dimplex PCM6015W11 has been discontinued

** See similar or replacement items below **

Dimplex

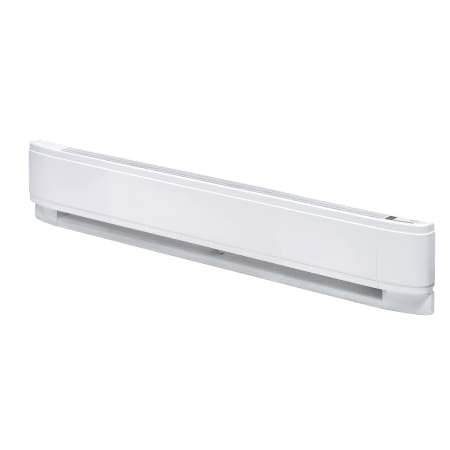

Angle View
Item # bci3854745

Dimplex PCM Series 5118 BTU 120V Electric Baseboard Heater with Built-In Electronic Thermostat

Model: PCM6015W11
|
Item: bci3854745

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

The Linear Proportional Convector Baseboard Heater is designed with the professional electrician in mind. The built-in electronic thermostat precisely controls the heat output for improved performance and reduced energy consumption.

Features:

  • Features a 1500 watt heating element with an output of 5118 BTU
  • Includes a built-in thermostat with push button operation, providing stable and consistent room temperatures to within 0.5°C (0.9°F) of desired set point
  • Also supports wireless control via the optional wall-mounted CONNEX controller
  • Solidly constructed of 22-gauge steel to ensure your heater lasts for years to come
  • Quick and easy installation with rear junction box and easy-to-remove front covers
  • Ships ready to install with front cover removed
  • Shark-fin heating element blade design improves heat transfer, provides quiet operation, and extends product life
  • Heating element is totally enclosed, providing superior life expectancy and resistance to rust
  • Features overheat protection, shutting off automatically in the event of unsafe high temperatures
  • UL listed for safe operation
  • Covered by a 1-year manufacturer warranty for the complete unit and a 10-year warranty for the heating element

Specifications:

  • Wattage: 1500
  • BTU Output: 5118
  • Fuel Type: Electric
  • Automatic Shut Off: Yes
  • Depth: 2-3/8"
  • Height: 6-5/8"
  • Width: 60"
  • Voltage: 120

Dimensions and Measurements

Depth
2.38 in.
Height
6.625 in.
Nominal Depth
2 in.
Nominal Height
7 in.
Nominal Width
60 in.
Product Weight
9.7 lbs.
Width
60 in.

Dimensions and Measurements

Depth
2.38 in.
Height
6.625 in.
Nominal Depth
2 in.
Nominal Height
7 in.
Nominal Width
60 in.
Product Weight
9.7 lbs.
Width
60 in.

Included Components

Blower
Yes
Includes Thermostat
Yes
Vent Free
Yes

Included Components

Blower
Yes
Includes Thermostat
Yes
Vent Free
Yes

Characteristics and Features

Control Type
Push Button
Element
Nickel Chromium
Heater Type
Baseboard Heater
Installation Type
Wall Mount
Material
Steel
Overheat Protection
Yes
Programmable
Yes
Vent Location
Vent Free

Characteristics and Features

Control Type
Push Button
Element
Nickel Chromium
Heater Type
Baseboard Heater
Installation Type
Wall Mount
Material
Steel
Overheat Protection
Yes
Programmable
Yes
Vent Location
Vent Free

Electrical and Operational Information

Adjustable Thermostat
Yes
Auto Shut Off
Yes
BTU Heating
5118
Fuel Type
Electric
Power Source
Hardwired
Voltage
120
Wattage
1500

Electrical and Operational Information

Adjustable Thermostat
Yes
Auto Shut Off
Yes
BTU Heating
5118
Fuel Type
Electric
Power Source
Hardwired
Voltage
120
Wattage
1500

Warranty and Product Information

Approved for Commercial Use
Yes
Certifications
UL
Energy Star
No
Manufacturer Warranty
1 Year Limited
Mobile Home Approved
Yes
Outdoor Approved
No

Warranty and Product Information

Approved for Commercial Use
Yes
Certifications
UL
Energy Star
No
Manufacturer Warranty
1 Year Limited
Mobile Home Approved
Yes
Outdoor Approved
No
