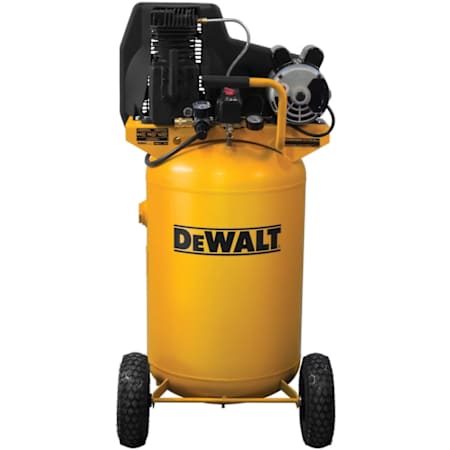

Dewalt 1.9 HP 30 Gal ASME Tank 155 Max PSI Single-Stage Portable Electric (120, 240 Volt 1 Phase) Reciprocating Air Compressor
Model: DXCMLA19830A54|Item: bci5120740
$1,326.10
32 In Stock
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 4 to 5 business days
-Details
Product Information:
- Heavy Duty 1.9 HP, Dual Voltage, Induction Motor
- Provides maximum performance & efficiency
- Wired for 120 Volt outlet, can be converted to 240 Volt operation
- Belt Drive: Better power transfer & longevity than direct drive units
- Twin Cylinder Pump
- Durable, 1-piece cast iron crankcase
- Aluminum head & valve plate help dissipate heat
- Reliable stainless reed valves & automotive style ball bearings
- 12 inch cast iron flywheel is enclosed for safety
- 30 Gallon Tank (ASME)
- 7CFM at 40 PSI & 5.7CFM at 90 PSI
- Pneumatic tires are already attached for maximum portability
- Convenient Controls
- Easy to see quick-set regulator, tank, & output gauges
- On/Off switch saves wear & tear on your power cord
- Shipped With Synthetic Oil
- Helps get longest life & best performance from your compressor
- Oil sight glass makes maintenance easier
- Made In U.S.A.
Specifications:
- Certifications: ASME, CSA, and UL
- Fuel Type: Electric
- Height: 48-1/2"
- Width: 29-1/4"
- Length: 24-1/4"
- Product Weight: 190 lbs
- Warranty: 1 Year Residential
Included Accessories:
- Pressure Gauge Included
- Pressure Regulator Included
Tank Specifications:
- Tank Outlet Size: 1/4"
- Tank Size: 30
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 6
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 1.9 HP
- dB Rating: 78
- Voltage: 120, 240V
- Voltage: 120, 240V
Dimensions and Measurements
CFM | 5.7 |
Height | 48.5 in. |
Length | 24.25 in. |
Product Weight | 190 lbs. |
Width | 29.25 in. |
Dimensions and Measurements
CFM | 5.7 |
Height | 48.5 in. |
Length | 24.25 in. |
Product Weight | 190 lbs. |
Width | 29.25 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 7 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/4" |
Tank Size | 30 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 7 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/4" |
Tank Size | 30 |
Tank Type | Hot Dog |
Electrical and Operational Information
Decibels | 78 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 1.9 |
Maximum Operating Pressure (PSI) | 155 |
Stages | Single-Stage |
Voltage | 120, 240 |
Electrical and Operational Information
Decibels | 78 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 1.9 |
Maximum Operating Pressure (PSI) | 155 |
Stages | Single-Stage |
Voltage | 120, 240 |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Residential |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Residential |
