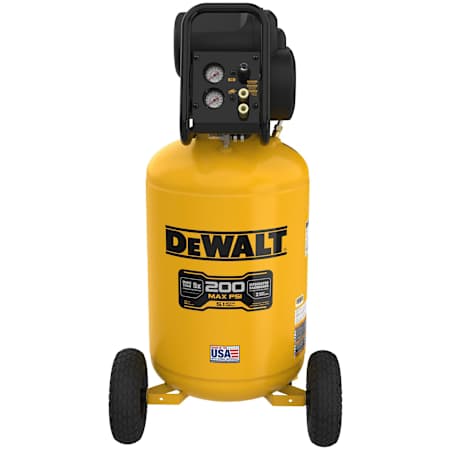

Dewalt 1.7 HP 30 Gal 200 Max PSI Single Stage Portable Electric (120 Volt -Phase) Air Compressor
Model: DXCM305.COM|Item: bci5225877
Details
The Dewalt 30 gal. portable vertical air compressor features 200 max PSI and 5.1 SCFM at 90 PSI, providing longer air tool run times and faster recovery between cycles. The oil-free pump requires no maintenance and starts reliably in cold weather conditions. Built with an integrated dashboard and heavy-duty protective handle, the pump and critical components are shielded from jobsite impacts. A high-flow regulator paired with dual quick couplers delivers maximum airflow to your pneumatic tools. Large 10 in. pneumatic tires roll easily over rough terrain, while the vertical tank design keeps the footprint compact for storage in shops and garages. UL1450 certified for sale in the US. Backed by a 1-year limited warranty.
Features:
- Oil-free, maintenance-free pump - no oil changes, no hassle, plus dependable starts in cold weather
- High-flow regulator with dual quick couplers - connect 2-tools at once and deliver maximum air to keep them running at peak performance
- 10" pneumatic tires - rolls easily over rough terrain, gravel, and jobsite obstacles for true portability
- Integrated dashboard and protective handle - shields the pump and gauges from damage while keeping controls accessible
- Easy-start motor - works with 12-gauge extension cords up to 50 ft. so you can set up wherever the job takes you
Specifications:
- Certifications: UL
- Fuel Type: Electric
- Height: 24"
- Width: 27"
- Length: 55"
- Product Weight: 135 lbs
- Warranty: 1 Year Limited
Tank Specifications:
- Tank Size: 30
Pump Specifications:
- CFM: 5
Engine and Motor Specifications:
- Horsepower: 1-11/16" HP
- dB Rating: 80
- Voltage: 120V
Specifications
Key Specifications
- Tank Size30
- Fuel TypeElectric
- Voltage120
Manufacturer Resources
Owners ManualDimensions and Measurements
CFM | 5.1 |
Height | 24 in. |
Length | 55 in. |
Product Weight | 135 lbs. |
Width | 27 in. |
Dimensions and Measurements
CFM | 5.1 |
Height | 24 in. |
Length | 55 in. |
Product Weight | 135 lbs. |
Width | 27 in. |
Characteristics and Features
Automatic Drain Valve Included | No |
CFM @ 40 PSI | 6.8 CFM |
CFM @ 90 PSI | 5.1 CFM |
CFM Rated @ | 90 PSI |
Mounting Type | Portable |
Tank Orientation | Vertical |
Tank Size | 30 |
Tank Type | Hot Dog |
Characteristics and Features
Automatic Drain Valve Included | No |
CFM @ 40 PSI | 6.8 CFM |
CFM @ 90 PSI | 5.1 CFM |
CFM Rated @ | 90 PSI |
Mounting Type | Portable |
Tank Orientation | Vertical |
Tank Size | 30 |
Tank Type | Hot Dog |
Electrical and Operational Information
Decibel Rating (dB) | 80 0 |
Electrical Phases | 1 |
Fuel Type | Electric |
Horsepower | 1.7 |
Maximum Operating Pressure (PSI) | 200 |
Stages | Single Stage |
Voltage | 120 |
Electrical and Operational Information
Decibel Rating (dB) | 80 0 |
Electrical Phases | 1 |
Fuel Type | Electric |
Horsepower | 1.7 |
Maximum Operating Pressure (PSI) | 200 |
Stages | Single Stage |
Voltage | 120 |
Warranty and Product Information
Certifications | UL |
Manufacturer Warranty | 1 Year Limited |
Warranty and Product Information
Certifications | UL |
Manufacturer Warranty | 1 Year Limited |
