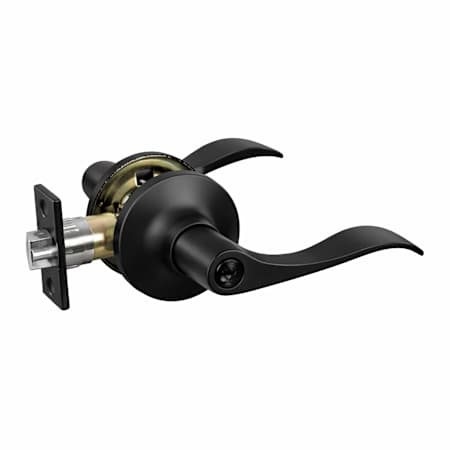

Design House Stratford Reversible Keyed Entry Door Lever Handleset with 6-Way Latch

Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Product Features:

• Entry Knob accepts a key on one side of the lock and is operated by a turn-button knob on the other side
• Designed for left or right hand doors, this knob fits the two most common backsets in the U.S. (2-3/4" and 2-3/8").
• Entry knobs are often used on front doors and back doors.
• Use this knob on standard 1-3/8" and 1-3/4" thick doors.
• Cross bore 2-1/8" diameter or edge bore 1-1/16" diameter (1" x 2-1/4" radius corner faceplate).
• This unit features anti-bump pins as an added security measure to keep your door securely shut when locked.
• This product is ANSI Grade-3 certified, which means this knob is rated for residential security.
• KW1 Keyway with entry lock KA3 - 3 keyed alike per cut case.
• Entry Knob comes with a limited lifetime mechanical and 5-year finish warranty.

Specifications:

• Height: 9-15/32"
• Length: 2-9/10"
• Width: 7-1/2"
• Handing: Reversible
• Backset: 2-3/8" or 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1-1/16"
• Latch Faceplate: Round Corner
• Door Thickness: 1-3/8" or 1-3/4"
• Cylinder: 5 Pin
• Application: Keyed Entry
• ADA: No
• ANSI Certification: Yes
• Handle Style: Lever
• ANSI Approved: Yes
• Number of Keys: 3
• Product Class: Residential
