The Design House 702480 has been discontinued

** See similar or replacement items below **

Design House
Item # bci1941991

Design House Springdale Keyed Entry Leverset

Model: 702480
|
Item: bci1941991

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

Springdale Keyed Entry Leverset

The Springdale lever set features a popular wave shaped lever and is easily incorporated into most architectural styles.

Design House 702480 Features:

  • Keyed Entry Function
  • 2 Way Latch
  • Grade 3 Security
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Adjustable 2-3/8 or 2-3/4 Inch Backset
  • 1-3/8" to 1-3/4" door standard
  • 5 Pin High Security
  • Removable core
  • 1" x 2-1/4 Radius corner
  • Full 1/2" throw Handleset
  • UL Listed for use on fire doors (up to 3 hours)
  • Non-handed, reversible for Left or Right Hand Doors
  • Anti Bump Feature
Additional Design House Links

Manufacturer Resources

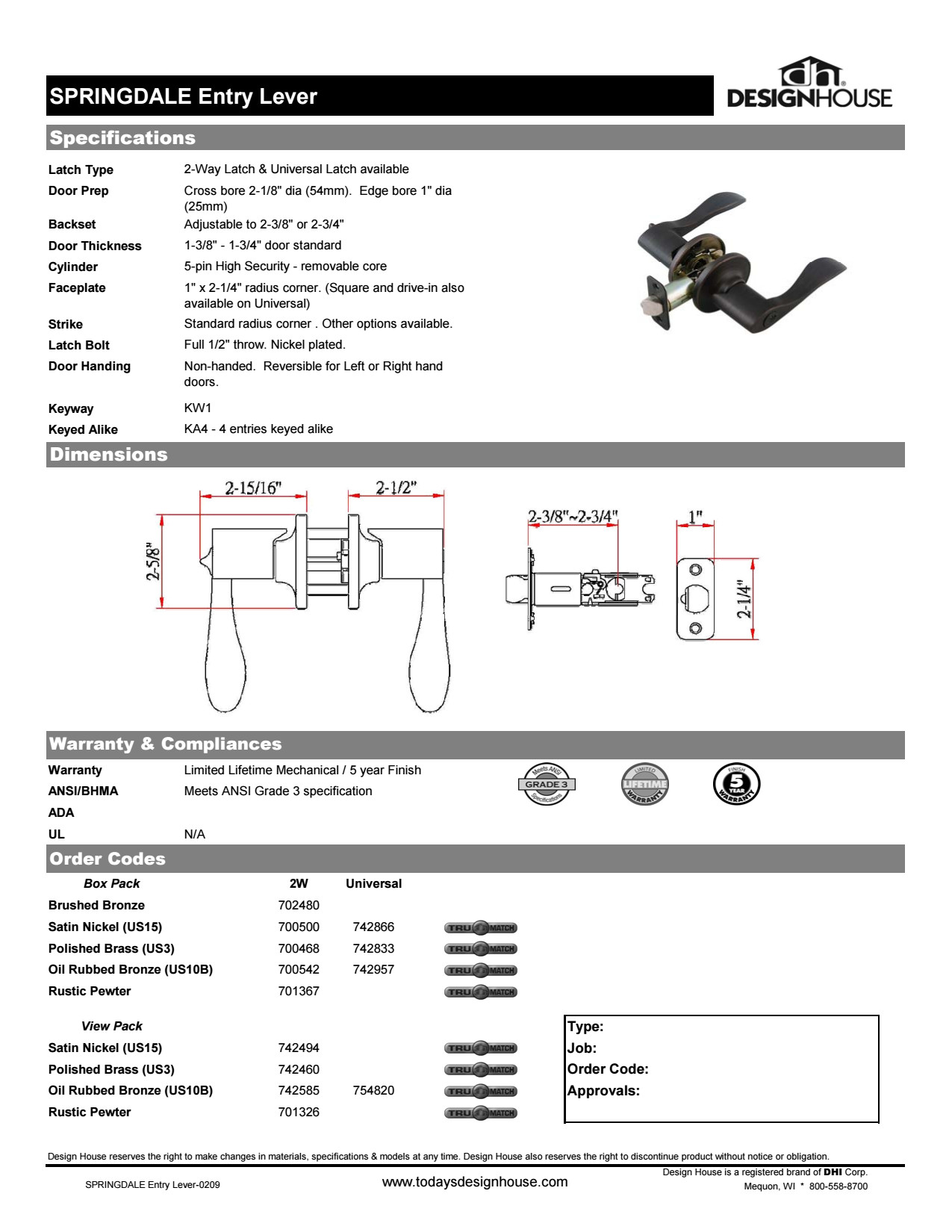

Specification Sheet

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Edge Bore
1"

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Edge Bore
1"

Characteristics and Features

Cylinder Type
Single Cylinder
Function
Keyed Entry
Handing
Left, Reversible, Right
Handle Material
Metal
Keyway
KW1
Latch Faceplate
Round Corner
Lever Shape
Wave
Material
Zinc
Rosette Shape
Round
Shape
Wave
Theme
Transitional

Characteristics and Features

Cylinder Type
Single Cylinder
Function
Keyed Entry
Handing
Left, Reversible, Right
Handle Material
Metal
Keyway
KW1
Latch Faceplate
Round Corner
Lever Shape
Wave
Material
Zinc
Rosette Shape
Round
Shape
Wave
Theme
Transitional

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
No
BHMA Certification
Grade 3
Collection
Springdale
Country Of Origin
China

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
No
BHMA Certification
Grade 3
Collection
Springdale
Country Of Origin
China
