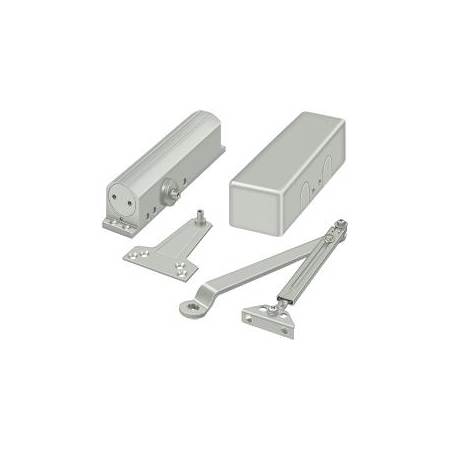

Deltana Aluminum Adjustable Size 1-6 Surface Mount Commercial Door Closer
Model: DC90-AL|Item: bci4942275
$151.65
Finish: Aluminum -
7 In Stock
Finish: Aluminum -
7 In Stock
Aluminum
Details
Features:
- Adjustable spring and backcheck
- Parallel, regular and top jamb arms included
- Constructed of high quality aluminum and steel for durability and dependability
- Installs easily with all necessary mounting hardware included
- Covered by Deltana's 5 year limited manufacturer warranty
Specifications:
- Height: 2-15/16"
- Projection: 2-1/2"
- Closer Body Length: 11-15/16"
- Horizontal Mounting Holes: 11-1/8"
- Vertical Mounting Holes: 3/4"
- Max Door Opening: 180 Degrees
- Max Door Weight: 330 lb.
Manufacturer Resources
Specification SheetDimensions and Measurements
Closer Body Length | 11.938 in. |
Closer Size | 1-6 |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Height | 2.96 in. |
Horizontal Mounting Holes | 11.125 in. |
Max Door Opening | 180 Degrees |
Max Door Weight | 330 lbs. |
Projection | 2.52 in. |
Vertical Mounting Holes | 0.75 in. |
Dimensions and Measurements
Closer Body Length | 11.938 in. |
Closer Size | 1-6 |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Height | 2.96 in. |
Horizontal Mounting Holes | 11.125 in. |
Max Door Opening | 180 Degrees |
Max Door Weight | 330 lbs. |
Projection | 2.52 in. |
Vertical Mounting Holes | 0.75 in. |
Included Components
Cushion Stop | No |
Included Components
Cushion Stop | No |
Characteristics and Features
Adjustable Backcheck | Yes |
Adjustable Spring | Yes |
Arm Type | Standard |
Barrier Free | No |
Delay Action | No |
Handing | Left, Reversible, Right |
Hold Open | No |
Material | Aluminum, Steel |
Mounting | Parallel, Regular, Top Jamb, Tri-Pack |
Operation Mode | Hydraulic |
Shell Material | Aluminum |
Characteristics and Features
Adjustable Backcheck | Yes |
Adjustable Spring | Yes |
Arm Type | Standard |
Barrier Free | No |
Delay Action | No |
Handing | Left, Reversible, Right |
Hold Open | No |
Material | Aluminum, Steel |
Mounting | Parallel, Regular, Top Jamb, Tri-Pack |
Operation Mode | Hydraulic |
Shell Material | Aluminum |
Electrical and Operational Information
Adjustable Closing Speed | Yes |
Adjustable Latching Speed | Yes |
Electrical and Operational Information
Adjustable Closing Speed | Yes |
Adjustable Latching Speed | Yes |
Warranty and Product Information
ADA | No |
Certifications | UL |
Fire Rated | Yes |
Manufacturer Warranty | 5 Year Limited |
Usage Level | Commercial Grade |
Warranty and Product Information
ADA | No |
Certifications | UL |
Fire Rated | Yes |
Manufacturer Warranty | 5 Year Limited |
Usage Level | Commercial Grade |
