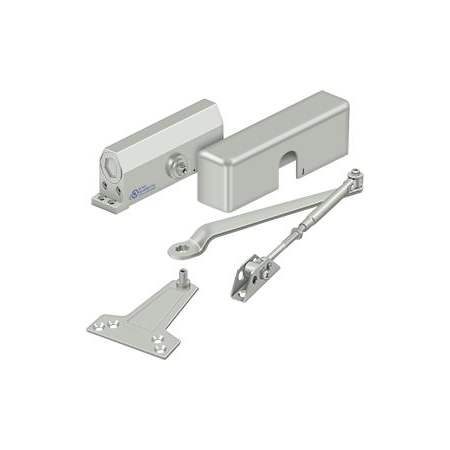

Deltana Aluminum Size 3 Surface Mount Commercial Door Closer
Model: DC70-AL|Item: bci3061090
$104.78
Finish: Aluminum -
4 In Stock
Finish: Aluminum -
4 In Stock
Aluminum
Details
Features:
- Adjustable backcheck
- Parallel, regular and top jamb arms included
- Constructed of high quality aluminum, cast iron, and steel for durability and dependability
- Installs easily with all necessary mounting hardware included
- Covered by Deltana's 5 year limited manufacturer warranty
Specifications:
- Height: 3"
- Projection: 3-1/8"
- Closer Body Length: 10-5/8"
- Horizontal Mounting Holes: 8-1/4"
- Vertical Mounting Holes: 7/8"
- Max Door Opening: 120 Degrees
- Max Door Weight: 140 lb.
Manufacturer Resources
Specification SheetDimensions and Measurements
Closer Body Length | 10.625 in. |
Closer Size | 3 |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Height | 3 in. |
Horizontal Mounting Holes | 8.25 in. |
Length | 10.625 in. |
Max Door Opening | 120 Degrees |
Max Door Weight | 140 lbs. |
Projection | 3.125 in. |
Vertical Mounting Holes | 0.875 in. |
Dimensions and Measurements
Closer Body Length | 10.625 in. |
Closer Size | 3 |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Height | 3 in. |
Horizontal Mounting Holes | 8.25 in. |
Length | 10.625 in. |
Max Door Opening | 120 Degrees |
Max Door Weight | 140 lbs. |
Projection | 3.125 in. |
Vertical Mounting Holes | 0.875 in. |
Included Components
Cushion Stop | No |
Included Components
Cushion Stop | No |
Characteristics and Features
Adjustable Backcheck | Yes |
Adjustable Spring | No |
Arm Type | Standard |
Barrier Free | No |
Delay Action | No |
Handing | Left, Reversible, Right |
Hold Open | No |
Material | Aluminum, Cast Iron, Steel |
Mounting | Parallel, Regular, Top Jamb, Tri-Pack |
Operation Mode | Hydraulic |
Shell Material | Aluminum |
Characteristics and Features
Adjustable Backcheck | Yes |
Adjustable Spring | No |
Arm Type | Standard |
Barrier Free | No |
Delay Action | No |
Handing | Left, Reversible, Right |
Hold Open | No |
Material | Aluminum, Cast Iron, Steel |
Mounting | Parallel, Regular, Top Jamb, Tri-Pack |
Operation Mode | Hydraulic |
Shell Material | Aluminum |
Electrical and Operational Information
Adjustable Closing Speed | Yes |
Adjustable Latching Speed | Yes |
Electrical and Operational Information
Adjustable Closing Speed | Yes |
Adjustable Latching Speed | Yes |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | Yes |
Certifications | UL |
Fire Rated | Yes |
Manufacturer Warranty | 5 Year Limited |
Usage Level | Commercial Grade |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | Yes |
Certifications | UL |
Fire Rated | Yes |
Manufacturer Warranty | 5 Year Limited |
Usage Level | Commercial Grade |
