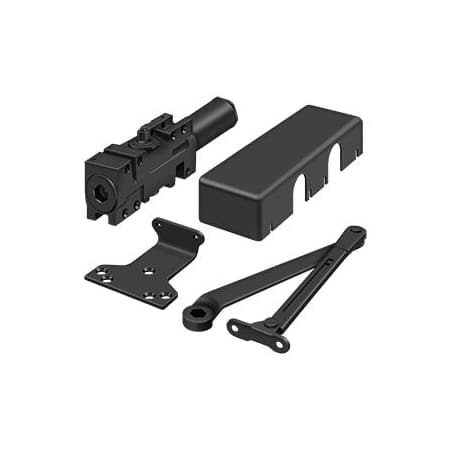

Deltana Cast Iron Adjustable Size 1-6 Surface Mount Commercial Door Closer
Model: DC40-DURO|Item: bci4942283
$216.00
Finish: Duro -
Special Order
Finish: Duro -
Special Order
Duro
Details
Features:
- Adjustable spring and backcheck
- Parallel, regular and top jamb arms included
- Constructed of high quality cast iron and steel for durability and dependability
- Installs easily with all necessary mounting hardware included
- Covered by Deltana's 5 year limited manufacturer warranty
Specifications:
- Height: 3-1/2"
- Projection: 2-1/4"
- Closer Body Length: 12-1/4"
- Horizontal Mounting Holes: 3"
- Vertical Mounting Holes: 2-1/4"
- Max Door Opening: 130 Degrees
- Max Door Weight: 330 lb.
Manufacturer Resources
Specification SheetDimensions and Measurements
Closer Body Length | 12.25 in. |
Closer Size | 1-6 |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Height | 3.5 in. |
Horizontal Mounting Holes | 3 in. |
Max Door Opening | 130 Degrees |
Max Door Weight | 330 lbs. |
Projection | 2.25 in. |
Vertical Mounting Holes | 2.25 in. |
Dimensions and Measurements
Closer Body Length | 12.25 in. |
Closer Size | 1-6 |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Height | 3.5 in. |
Horizontal Mounting Holes | 3 in. |
Max Door Opening | 130 Degrees |
Max Door Weight | 330 lbs. |
Projection | 2.25 in. |
Vertical Mounting Holes | 2.25 in. |
Included Components
Cushion Stop | No |
Included Components
Cushion Stop | No |
Characteristics and Features
Adjustable Backcheck | Yes |
Adjustable Spring | Yes |
Arm Type | Standard |
Barrier Free | No |
Delay Action | No |
Handing | Left, Reversible, Right |
Hold Open | No |
Material | Cast Iron, Steel |
Mounting | Parallel, Regular, Top Jamb, Tri-Pack |
Operation Mode | Hydraulic |
Shell Material | Cast Iron |
Characteristics and Features
Adjustable Backcheck | Yes |
Adjustable Spring | Yes |
Arm Type | Standard |
Barrier Free | No |
Delay Action | No |
Handing | Left, Reversible, Right |
Hold Open | No |
Material | Cast Iron, Steel |
Mounting | Parallel, Regular, Top Jamb, Tri-Pack |
Operation Mode | Hydraulic |
Shell Material | Cast Iron |
Electrical and Operational Information
Adjustable Closing Speed | Yes |
Adjustable Latching Speed | Yes |
Electrical and Operational Information
Adjustable Closing Speed | Yes |
Adjustable Latching Speed | Yes |
Warranty and Product Information
ADA | No |
Fire Rated | No |
Manufacturer Warranty | 5 Year Limited |
Usage Level | Commercial Grade |
Warranty and Product Information
ADA | No |
Fire Rated | No |
Manufacturer Warranty | 5 Year Limited |
Usage Level | Commercial Grade |
