Daikin Atmosphera Series 12K BTU Cooling / 13.6K BTU Heating 25.2 SEER2 HSFP2 10.7 Single Zone Wall Mount Mini Split System with (1) 12K BTU Indoor Unit

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. With indoor unit options consisting of streamlined wall mount units, built-in slim duct units, or a combination of both, multi-split systems offer over 1,000 possible connection combinations, creating a flexible, powerful and energy efficient system. Integrated with an inverter variable speed compressor, systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption by 30% compared to traditional fixed speed systems. This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort with maximum energy savings.

Package Includes:

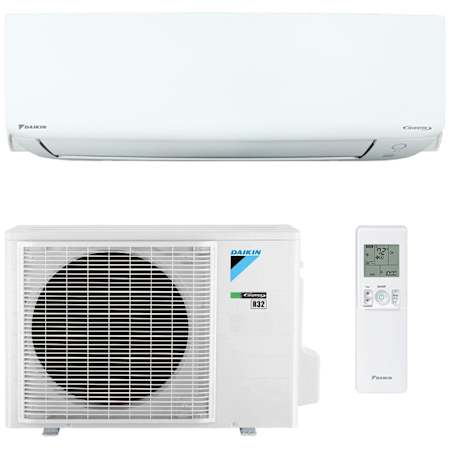

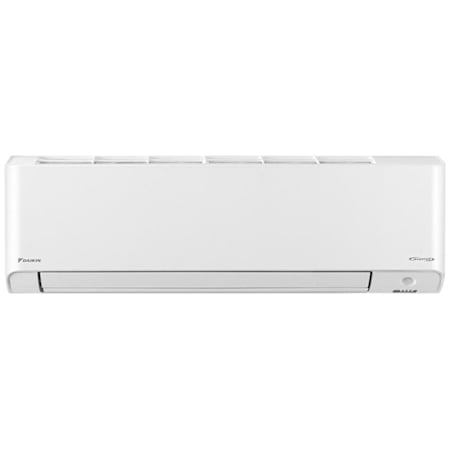

(1) RXM12WVJU9 Outdoor Unit and (1) FTXM12WVJU9 Wall Mount Indoor Unit

Features:

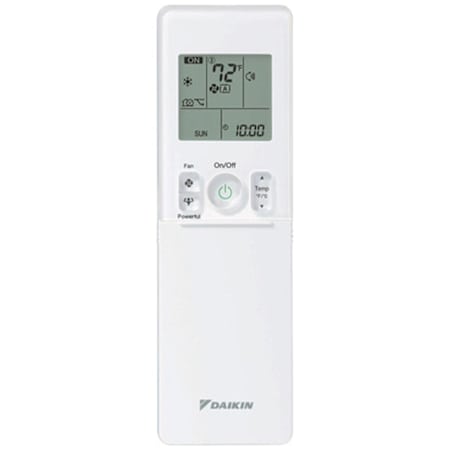

Wireless Remote Controller
• Conveniently control the temperature and settings from anywhere in the room with the wireless remote controller
Econo Mode
• Reduce start-up energy consumption by 30% by limiting maximum current and power minimizing the load on electrical circuits when multiple devices are used at once
3-D Airflow
• Circulate your airflow vertically and horizontally to reach all corners of large spaces
Easy Maintenance
• The indoor unit's design makes it simple to remove and clean key components, such as the drain pan, blower wheel, and fan motor
Boost Mode
• Press the Powerful button on the remote to temporarily increase cooling or heating power for 20 minutes, even at high capacity
Comfort Mode
• This unit features an adjustable flap, for cooling the flap can tilt horizontally to direct cool airflow away from the body. For heating, it flips downwards to distribute warm air to the floor.
Daikin Comfort Control App
• Stay in control from anywhere. Access your Daikin Atmosphera system via Wi-Fi using your tablet or smartphone, no adapter needed.
Intelligent Eye
• This unit features an advanced infrared sensor that detects movement in the room. If no one's around for 20 minutes, it adjusts the thermostat to conserve energy.
Efficient Dehumidification
• The hybrid cooling system efficiently dehumidifies even in low cooling loads, continuing to maintain a dry environment after the target temperature is reached
Clean Operation
• The clean function dries the indoor unit's interior to reduce condensation, which may occur during cool or dry operation, it's recommended to use this feature to keep the air conditioner dry
Hot Start
• The unit's Hot Start feature ensures no cold draft is present when it switches from cooling to heating or begins heating operation
Inverter Compressor
• Efficiently adjusts the compressor speed to maintain a consistent temperature, reducing energy consumption and ensuring quiet operation
Anti-Corrosion Treatment on Heat Exchanger
• The heat exchanger is coated with a special anti-corrosion treatment, resisting salt damage and atmospheric corrosion for a longer lifespan
Increased Factory Charge
• Daikin Atmosphera units come pre-charged to accommodate piping lengths up to 49 ft (15m), a 50% increase in coverage compared to previous models

Recommended Line Set Sizes (For Indoor Unit Connectivity):

• FTXM12WVJU9: 1/4" x 3/8" Line Set (Qty 1)

Product Assurance:

• Performance and Efficiency:
  • SEER2: 25.2
  • HSPF2: 10.7
• Manufacturer Warranty: 5 Year Limited

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Component Specifications:
