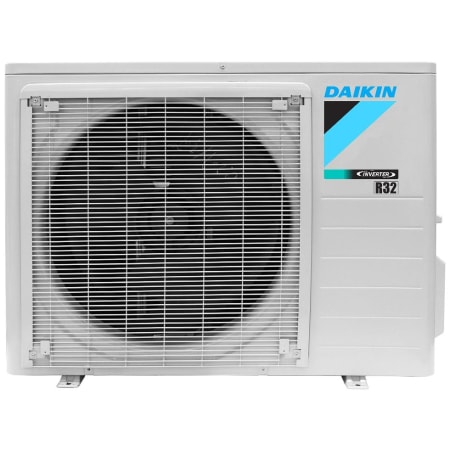

Daikin Oterra Series 18,100 BTU Cooling / 21,600 BTU Heating 21 SEER2 One Zone Mini Split Condenser Unit

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Outdoor condenser unit only, indoor evaporator unit(s) required for proper functionality. For questions or assistance building a multi-zone system, please call (855) 484-3292 to speak to one of our experts.

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. Daikin outdoor units are designed with powerful energy saving features, allowing these systems to provide you with cost-efficient home comfort.

Product Information:

• Inverter Compressor
• Efficiently adjusts the compressor speed to maintain a consistent temperature, reducing energy consumption and ensuring quiet operation.
• Anti-Corrosion Treatment on Heat Exchanger
• The heat exchanger is coated with a special anti-corrosion treatment, resisting salt damage and atmospheric corrosion for a longer lifespan.
• Quick Warming Function
• Prevents heat pumps from pumping liquid refrigerant in cold temperatures.
• Automatic Defrosting
• The defrost sensor detects when the outdoor heat exchanger needs defrosting and performs it automatically, ensuring optimal heating performance.

Specifications:

• Cooling BTU Capacity: 18,100
• Heating BTU Capacity: 21,600
• Zone Capacity: 1
• Sound Level: 33 to 54 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: 5 F
• Minimum Outdoor Temperature for Cooling: 50 F
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 1/2" Inch
• Depth: 13-3/16"
• Height: 27-7/16"
• Width: 36-5/8"
• Recommended Breaker Size: 20 A
• Amperage: 20 A
• Voltage: 208, 230V

Product Assurance:

• Certifications: AHRI
• Performance and Efficiency:
  • SEER2: 20
  • HSPF2: 9.6
• Manufacturer Warranty: 5 Year Limited

Required Components:

• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris
