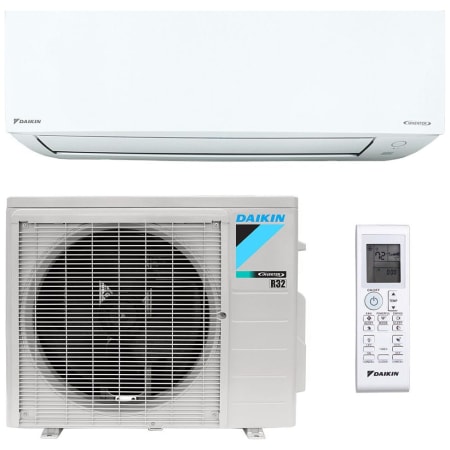

Daikin ENTRA Series 12K BTU Cooling / 11.3K BTU Heating 18 SEER2 Single Zone Wall Mount Mini Split System with (1) 12K BTU Indoor Unit

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. With indoor unit options consisting of streamlined wall mount units, built-in slim duct units, or a combination of both, multi-split systems offer over 1,000 possible connection combinations, creating a flexible, powerful and energy efficient system. Integrated with an inverter variable speed compressor, systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption by 30% compared to traditional fixed speed systems. This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort with maximum energy savings.

Package Includes:

Features:

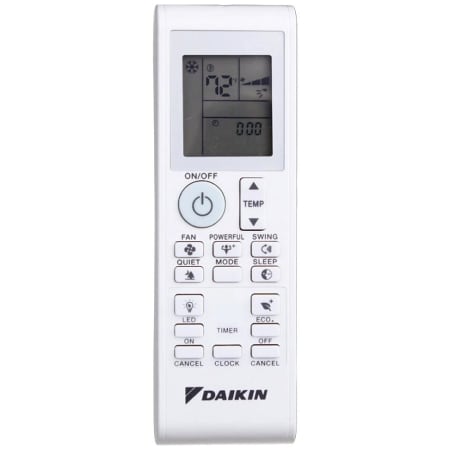

Wireless Remote Controller
• Conveniently control the temperature and settings from anywhere in the room with the wireless remote controller
Boost Mode
• Press the Powerful button on the remote to temporarily increase cooling or heating power for 20 minutes, even at high capacity
ECO+ Mode
• Automatically adjust temperatures to the most energy-efficient level, optimizing energy consumption while maintaining comfort
Blue Fin Protection
• Blue Fin Protection is a hydrophilic coating that allows condensate water to flow easily to the drain pan, promoting cleanliness and prolonging coil lifespan
Titanium Apatite Filter
• This filter combines a high-performance filter with air purification and photocatalytic deodorizing capabilities
Inverter Compressor
• Efficiently adjusts the compressor speed to maintain a consistent temperature, reducing energy consumption and ensuring quiet operation
Anti-Corrosion Treatment on Heat Exchanger
• The heat exchanger is coated with a special anti-corrosion treatment, resisting salt damage and atmospheric corrosion for a longer lifespan

Recommended Line Set Sizes (For Indoor Unit Connectivity):

• FTXC12AXVJU: 1/4" x 3/8" Line Set (Qty 1)

Product Assurance:

• Performance and Efficiency:
  • SEER2: 18
  • HSPF2: 9
• Manufacturer Warranty: 5 Year

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Component Specifications:

RXC12AXVJU

• Cooling BTU Capacity: 12000 BTU
• Heating BTU Capacity: 11300 BTU
• Zone Capacity: 1
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: 5 °F
• Minimum Outdoor Temperature for Cooling: 50 °F
• Depth: 11.1875"
• Height: 21.69"
• Width: 26.5"
• Breaker Requirements: 15A
• Amperage: 15A
• Voltage: 208V, 230V

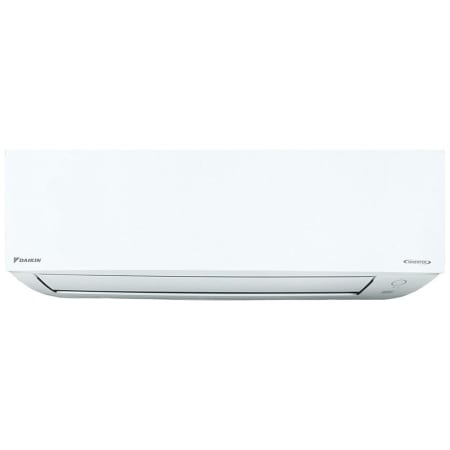

FTXC12AXVJU

• Zone Cooling BTU: 12000 BTU
• Zone Heating BTU: 11300 BTU
• Sound Level: 19 to 45 dB
• Liquid Line Connection Size: 1/4"
• Gas Line Connection Size: 3/8"
• Depth: 9.6875"
• Height: 11.33"
• Width: 30.3125"
• Amperage: 15A
• Voltage: 208V, 230V
