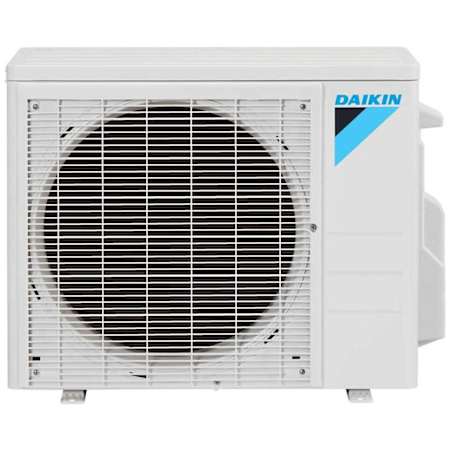

Daikin 30,000 BTU Cooling / 34,800 BTU Heating 17.5 SEER2 One Zone Mini Split Condenser Unit with Inverter Compressor and Anti-Corrosion Treatment

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Outdoor condenser only, indoor wall unit required for proper functionality.

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. Daikin outdoor units are designed with powerful energy saving features, allowing these systems to provide you with cost-efficient home comfort.

Specifications:

• Cooling BTU Capacity: 31,400
• Heating BTU Capacity: 34,800
• Zone Capacity: 1
• Cooling Area: 1570 Sq. Ft.
• Sound Level: 56 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Cooling: 50 F
• Liquid Line Connection Size: 1/4"
• Gas Line Connection Size: 5/8"
• Depth: 12-5/8"
• Height: 28-15/16"
• Width: 34-1/4"
• Recommended Breaker Size: 20 A
• Voltage: 208, 230V

Product Assurance:

• Certifications:
  • AHRI
  • ETL
• Performance and Efficiency:
  • SEER2: 17.5
• Manufacturer Warranty: 5 Year

Required Components:

• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris
