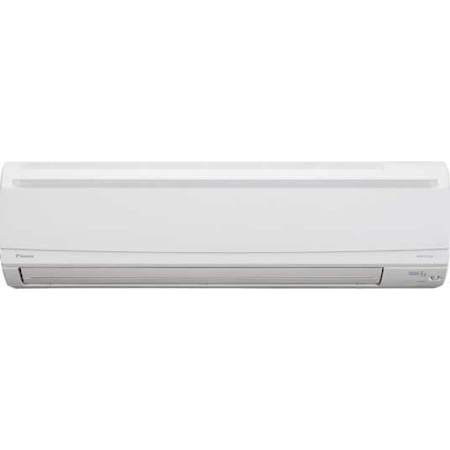

Daikin 15,000 BTU Cooling Mini Split Wall Mount Indoor Unit with Advanced Filtration System and Energy Saving Mode
Model: FTXS15LVJU|Item: bci3115649
Details
Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. This is an FTXS15LVJU wall mounted indoor unit for use in building a multi-zone mini split system. Whisper quiet operation means that the unit will never draw attention to itself, and sleek aesthetics allow the unit to blend into almost any home decoration theme. Daikin indoor units possess powerful energy saving features, which when combined with Daikin's extensive experience with building efficient units provides a cost-conscious solution to any home's heating and cooling needs.
Features:
- Covered under a 5 year manufacturer warranty
Specifications:
- Zone Cooling BTU: 15,000
- Sound Level: 30 to 45 dB
- Liquid Line Connection Size: 1/4" Inch
- Gas Line Connection Size: 1/2" Inch
- Voltage: 208, 230V
Product Assurance:
- Certifications:
- AHRI
- ETL
- ISO
- Manufacturer Warranty: 5 Year
Required Components:
- Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
- Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
- Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
Manufacturer Resources
WarrantySubmittal Data SheetBrochureOwner's ManualInstallation SheetSpecification SheetDimensions and Measurements
CFM | 360, 385, 477, 568, 593 |
Cooling Area | 750 sq. ft. |
Depth | 9.75 in. |
Depth (Indoor Unit) | 9.75 in. |
Drain Connection | 0.625 in. |
Gas Connection | 1/2" |
Height | 13.375 in. |
Height (Indoor Unit) | 13.375 in. |
Liquid Line Connection Size | 1/4" |
Moisture Removal (Pints per Hour) | 6.4 |
Product Weight | 44 lbs. |
Width | 41.3125 in. |
Width (Indoor Unit) | 41.3125 in. |
Dimensions and Measurements
CFM | 360, 385, 477, 568, 593 |
Cooling Area | 750 sq. ft. |
Depth | 9.75 in. |
Depth (Indoor Unit) | 9.75 in. |
Drain Connection | 0.625 in. |
Gas Connection | 1/2" |
Height | 13.375 in. |
Height (Indoor Unit) | 13.375 in. |
Liquid Line Connection Size | 1/4" |
Moisture Removal (Pints per Hour) | 6.4 |
Product Weight | 44 lbs. |
Width | 41.3125 in. |
Width (Indoor Unit) | 41.3125 in. |
Included Components
Heater Included | Yes |

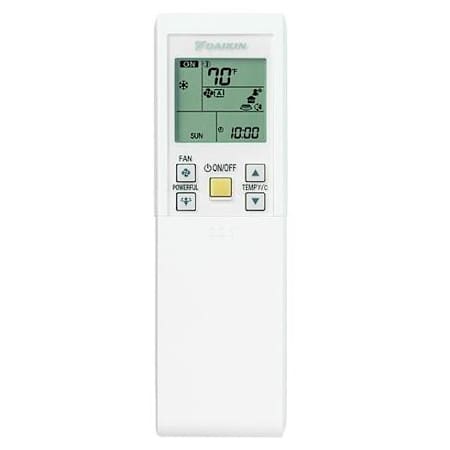

Includes Remote | Yes |
Includes Thermostat | Yes |
Includes Timer | Yes |
Included Components
Heater Included | Yes |
Includes Remote | Yes |
Includes Thermostat | Yes |
Includes Timer | Yes |
Characteristics and Features
Control Type | Remote |
Display Type | Digital |
Indoor Unit Type | Wall Mount |
Installation Type | Mini Split |
Programmable | No |
Refrigerant | R-410A |
Sleep Mode | Yes |
Characteristics and Features
Control Type | Remote |
Display Type | Digital |
Indoor Unit Type | Wall Mount |
Installation Type | Mini Split |
Programmable | No |
Refrigerant | R-410A |
Sleep Mode | Yes |
Electrical and Operational Information
Amperage | 0.31 |
BTU Cooling | 15000 |
BTU Heating | 18000 |
dBA (High) | 45 |
dBA (Low) | 30 |
EER | 14.4 |
Electrical Phases | 1 |
Fan Speeds | 4 |
Frequency | 60 Hertz |
Number of Zones | 1 |
Power Source | Hardwired |
Voltage | 208, 230 |
Zone Cooling BTU | 15000 |
Electrical and Operational Information
Amperage | 0.31 |
BTU Cooling | 15000 |
BTU Heating | 18000 |
dBA (High) | 45 |
dBA (Low) | 30 |
EER | 14.4 |
Electrical Phases | 1 |
Fan Speeds | 4 |
Frequency | 60 Hertz |
Number of Zones | 1 |
Power Source | Hardwired |
Voltage | 208, 230 |
Zone Cooling BTU | 15000 |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | AHRI, ETL, ISO |
Collection | LV |
Energy Star | No |
Manufacturer Warranty | 5 Year |
Outdoor Approved | No |
SEER Cooling | 20.6 |
Title 20 Compliant | Yes |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | AHRI, ETL, ISO |
Collection | LV |
Energy Star | No |
Manufacturer Warranty | 5 Year |
Outdoor Approved | No |
SEER Cooling | 20.6 |
Title 20 Compliant | Yes |
