Daikin
Daikin 12,000 BTU Cooling Mini Split Wall Mount Indoor Unit N/A
Alternate Image
Daikin 12,000 BTU Cooling Mini Split Wall Mount Indoor Unit N/A
Alternate Image

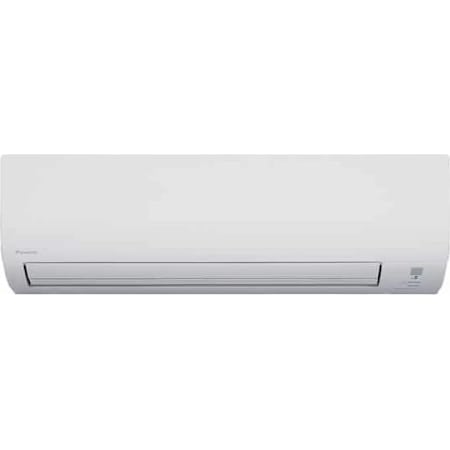

Daikin 12,000 BTU Cooling Mini Split Wall Mount Indoor Unit

Model: FTX12NMVJU
|
Item: bci3115705

$375.79
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

Features:

  • 12,000 BTU cooling and 13500 BTU heating output efficiently keeps your room at the perfect temperature throughout the year
  • Can effectively heat and cool up to 400 square feet
  • Six (6) fan speeds allow you to customize the output of the unit to suit your needs
  • Removable and washable air purifying filters are easy to clean, simply wipe down with a damp cloth
  • The condenser is designed for single zone applications only

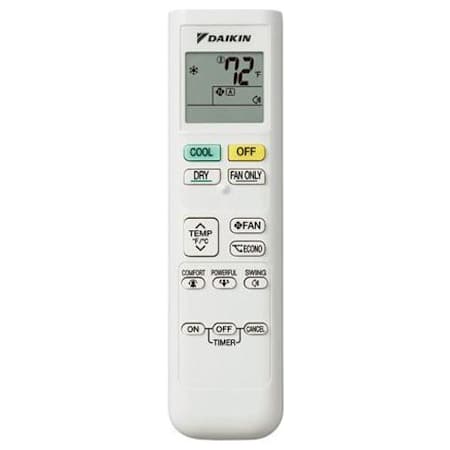

  • Included remote control lets you control all aspects of the unit from anywhere in the room
  • Sleep mode saves energy and gradually increases the temperature over the course of the evening for more comfort and easier sleeping
  • Professional installation required for warranty coverage
  • Covered under a 5 year manufacturer warranty

Specifications:

  • Zone Cooling BTU: 12,000
  • Zone Heating BTU: 13,500
  • Sound Level: 19 to 45 dB
  • Moisture Removal (Pints Per Hour): 4
  • Fan Speeds: 6
  • Liquid Line Connection Size: 1/4" Inch
  • Gas Line Connection Size: 5/8" Inch
  • Depth: 8-3/4"
  • Height: 11-1/4"
  • Width: 30-5/16"
  • Amperage: 12.2 A
  • Voltage: 208, 230V

Product Assurance:

  • Certifications:
    • AHRI
    • ETL
    • ISO
  • Manufacturer Warranty: 5 Year

Required Components:

  • Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
  • Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
  • Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser

Manufacturer Resources

Installation GuideOwner's Manual

Dimensions and Measurements

CFM
145, 247, 311, 434
Cooling Area
600 sq. ft.
Depth
8.75 in.
Drain Connection
0.625 in.
Gas Connection
5/8"
Height
11.25 in.
Liquid Line Connection Size
1/4"
Moisture Removal (Pints per Hour)
4
Product Weight
18 lbs.
Width
30.325 in.

Dimensions and Measurements

CFM
145, 247, 311, 434
Cooling Area
600 sq. ft.
Depth
8.75 in.
Drain Connection
0.625 in.
Gas Connection
5/8"
Height
11.25 in.
Liquid Line Connection Size
1/4"
Moisture Removal (Pints per Hour)
4
Product Weight
18 lbs.
Width
30.325 in.

Included Components

Heater Included
Yes
Includes Remote
Yes
Includes Thermostat
Yes
Includes Timer
Yes

Included Components

Heater Included
Yes
Includes Remote
Yes
Includes Thermostat
Yes
Includes Timer
Yes

Characteristics and Features

Control Type
Remote
Display Type
Digital
Indoor Unit Type
Wall Mount
Installation Type
Mini Split
Programmable
No
Refrigerant
R-410A
Sleep Mode
Yes

Characteristics and Features

Control Type
Remote
Display Type
Digital
Indoor Unit Type
Wall Mount
Installation Type
Mini Split
Programmable
No
Refrigerant
R-410A
Sleep Mode
Yes

Electrical and Operational Information

Amperage
12.2
BTU Cooling
10900
BTU Heating
13500
dBA (High)
45
dBA (Low)
19
EER
12.5
Electrical Phases
1
Fan Speeds
6
Frequency
60 Hertz
Power Source
Hardwired
Voltage
208, 230
Zone Cooling BTU
12000
Zone Heating BTU
13500

Electrical and Operational Information

Amperage
12.2
BTU Cooling
10900
BTU Heating
13500
dBA (High)
45
dBA (Low)
19
EER
12.5
Electrical Phases
1
Fan Speeds
6
Frequency
60 Hertz
Power Source
Hardwired
Voltage
208, 230
Zone Cooling BTU
12000
Zone Heating BTU
13500

Warranty and Product Information

Approved for Commercial Use
No
Certifications
AHRI, ETL, ISO
Collection
19
Energy Star
No
Manufacturer Warranty
5 Year
Outdoor Approved
No
SEER Cooling
19
Title 20 Compliant
Yes

Warranty and Product Information

Approved for Commercial Use
No
Certifications
AHRI, ETL, ISO
Collection
19
Energy Star
No
Manufacturer Warranty
5 Year
Outdoor Approved
No
SEER Cooling
19
Title 20 Compliant
Yes
