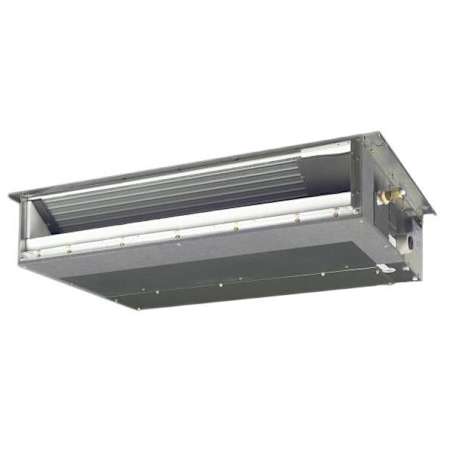

Daikin MXS Series 9,000 BTU Cooling / 10,000 BTU Heating Mini Split Concealed Duct Indoor Unit

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Indoor evaporator unit only, outdoor condenser required for proper functionality. For questions or assistance building a multi-zone system, please call (855) 484-3292 to speak to one of our experts.

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. This is an FDXS09LVJU concealed duct indoor unit for use in building a multi-zone mini split system. Whisper quiet operation means that the unit will never draw attention to itself, and sleek aesthetics allow the unit to blend into almost any home decoration theme. Daikin indoor units posess powerful energy saving features, which when combined with Daikin's extensive experience with building efficient units provides a cost-conscious solution to any home's heating and cooling needs.

Product Technologies:

• Whisper Quiet Operation: Daikin ductless units are engineered from the ground up for impressively quiet operation. The solidness of the unit's construction works together with quiet motor operation to make the units as unobtrusive as possible to its surrounding environment.

• Inverter Technology Prevents Temperature Fluctuation: Daikin's inverter technology works together with the expansion valve to adjust coolant flow rate and compressor speed to match indoor conditions. This results in less dramatic indoor temperature swings, which in turn results in a more comfortable home.

• Included Wireless Control: The included wireless control allows you to control the temperature of your room while never leaving the comfort of your favorite recliner.

• Built-In Advanced Filtration System: Daikin mini splits do more for your home's comfort level than control its temperature. An advanced microbial filtration system is installed in the indoor unit, allowing the mini split to purify your home's air as well as heating or cooling it.

Specifications:

• Zone Cooling BTU: 9000
• Zone Heating BTU: 10000
• Sound Level: 31 to 35 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 3/8" Inch
• Depth: 24-7/16"
• Height: 7-7/8"
• Width: 27-9/16"
• Voltage: 208, 230V

Product Assurance:

• Certifications: ETL
• Manufacturer Warranty: 12 Year Limited Parts

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
