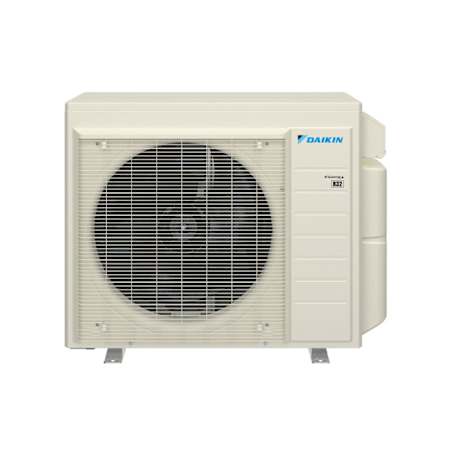

Daikin 34,200 BTU Cooling / 36,000 BTU Heating 20 SEER2 Four Zone Mini Split Condenser Unit

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Outdoor condenser unit only, indoor evaporator unit(s) required for proper functionality. For questions or assistance building a multi-zone system, please call (855) 484-3292 to speak to one of our experts.

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. The 4MXM36AVJU9 condenser supports four indoor units operating simultaneously, allowing you to build the ideal system type to fit your home's specific needs. A broad range of accessories are available to add to your system as well, which when combined with Daikin's extensive experience with building efficient units provides a solution to any home's heating and cooling needs.

Specifications:

• Cooling BTU Capacity: 34,200
• Heating BTU Capacity: 36,000
• Zone Capacity: 4
• Sound Level: 56 to 60 dB
• Depth: 12-5/8"
• Height: 29-1/2"
• Width: 34-1/4"
• Amperage: 18.5 A
• Voltage: 208, 230V

Product Assurance:

• Performance and Efficiency:
  • SEER2: 20
  • HSPF2: 9.5
• Manufacturer Warranty: 5 Year Limited

Required Components:

• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris
