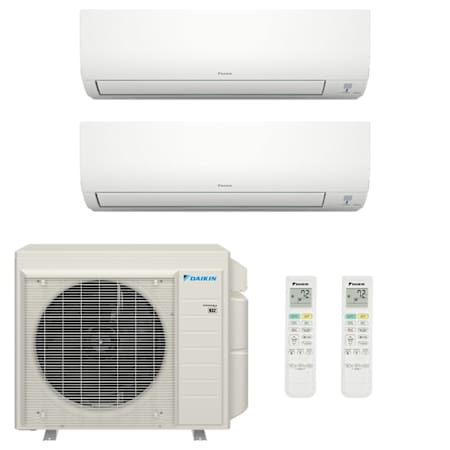

Daikin MXM Series 34.2K BTU Cooling / 36K BTU Heating 20 SEER2 Two Zone Wall Mount Mini Split System with (1) 9K and (1) 24K BTU Indoor Units

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. With indoor unit options consisting of streamlined wall mount units, built-in slim duct units, or a combination of both, multi-split systems offer over 1,000 possible connection combinations, creating a flexible, powerful and energy efficient system. Integrated with an inverter variable speed compressor, systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption by 30% compared to traditional fixed speed systems. This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort with maximum energy savings.

Package Includes:

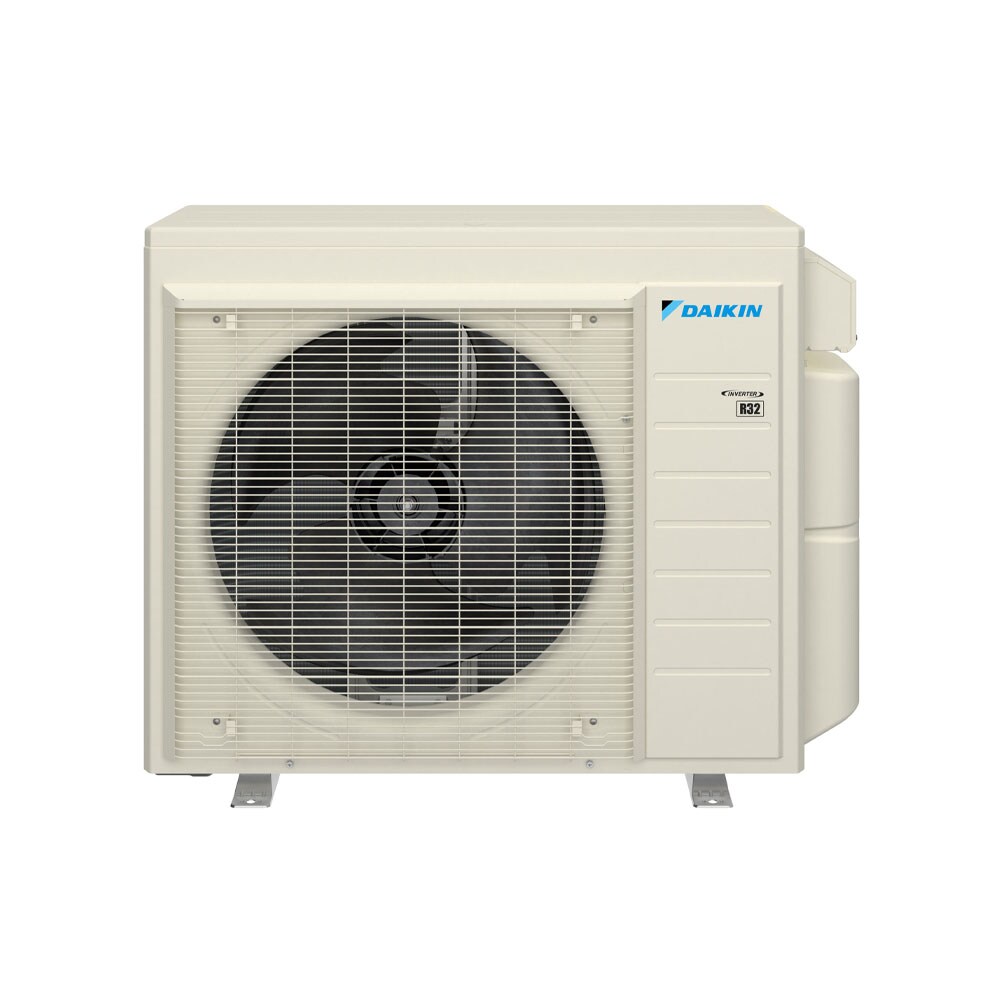

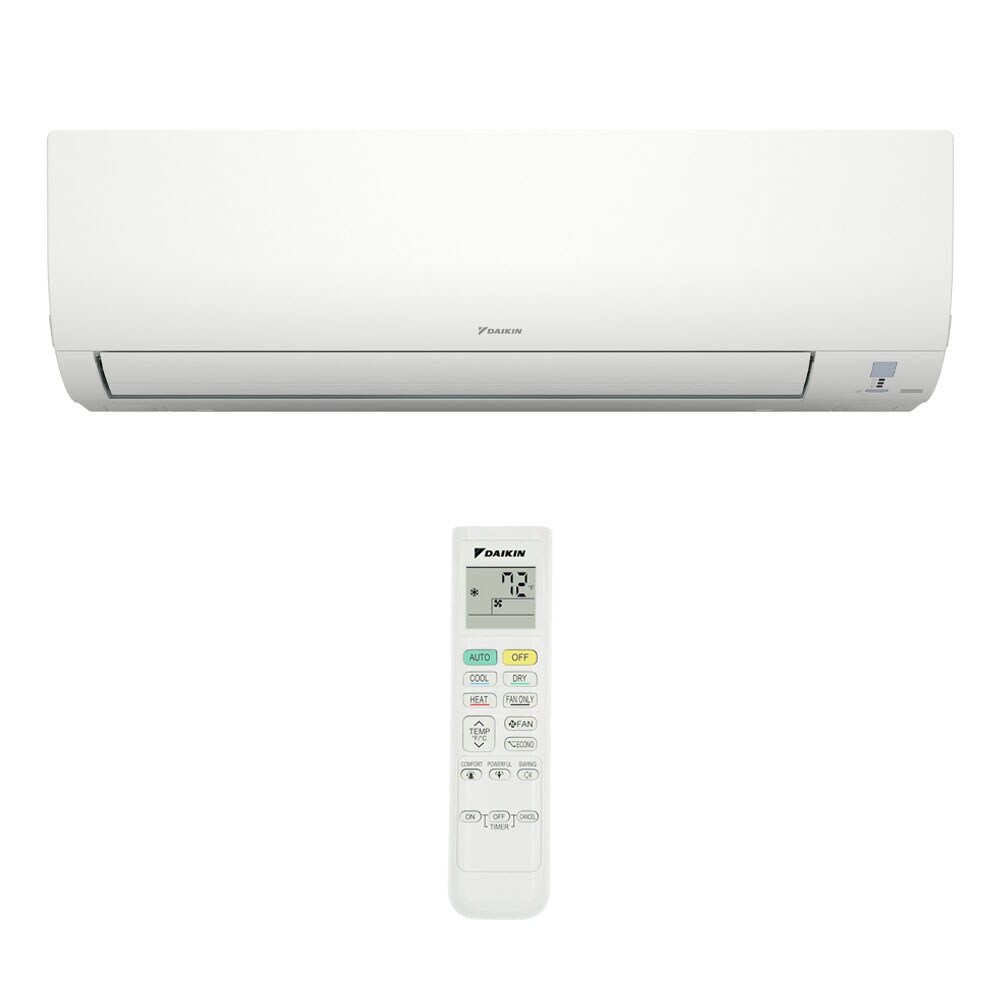

(1) 4MXM36AVJU9 Outdoor Unit, (1) FTXV09AVJU9 Wall Mount Indoor Unit, and (1) FTXV24AVJU9 Wall Mount Indoor Unit

Recommended Line Set Sizes (For Indoor Unit Connectivity):

• FTXV09AVJU9: 1/4" x 3/8" Line Set (Qty 1)
• FTXV24AVJU9: 1/4" x 5/8" Line Set (Qty 1)

Product Assurance:

• Performance and Efficiency:
  • SEER2: 20
  • HSPF2: 9.5
• Manufacturer Warranty: 5 Year Limited

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Component Specifications:
