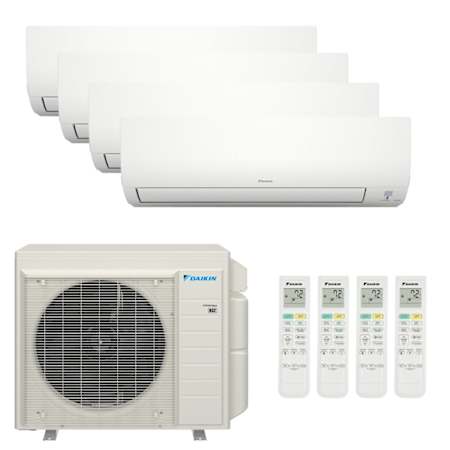

Daikin MXM Series 34.2K BTU Cooling / 36K BTU Heating 20 SEER2 Four Zone Wall Mount Mini Split System with (1) 7K, (1) 9K, (1) 12K and (1) 15K BTU Indoor Units

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. With indoor unit options consisting of streamlined wall mount units, built-in slim duct units, or a combination of both, multi-split systems offer over 1,000 possible connection combinations, creating a flexible, powerful and energy efficient system. Integrated with an inverter variable speed compressor, systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption by 30% compared to traditional fixed speed systems. This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort with maximum energy savings.

Package Includes:

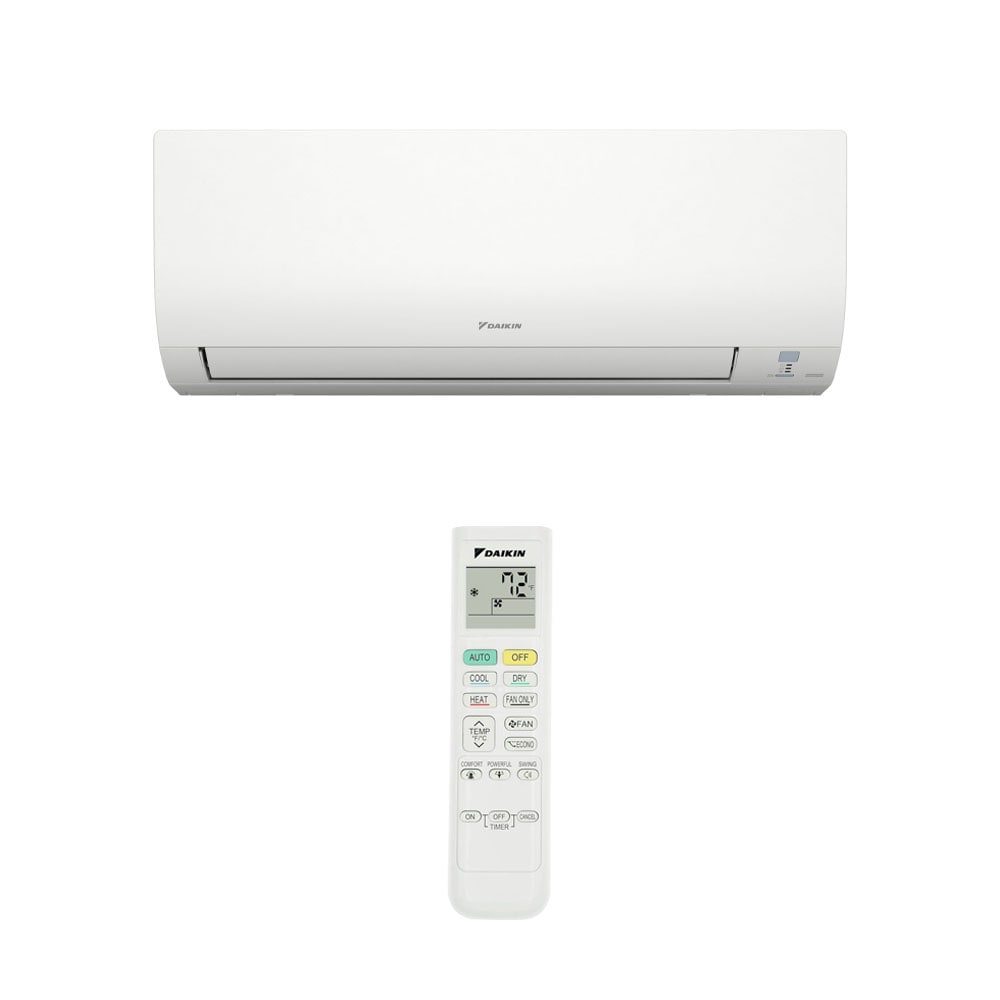

(1) 4MXM36AVJU9 Outdoor Unit, (1) CTXV07AVJU9 Wall Mount Indoor Unit, (1) FTXV09AVJU9 Wall Mount Indoor Unit, (1) FTXV12AVJU9 Wall Mount Indoor Unit, and (1) FTXV15AVJU9 Wall Mount Indoor Unit

Recommended Line Set Sizes (For Indoor Unit Connectivity):

• CTXV07AVJU9: 1/4" x 3/8" Line Set (Qty 1)
• FTXV09AVJU9: 1/4" x 3/8" Line Set (Qty 1)
• FTXV12AVJU9: 1/4" x 3/8" Line Set (Qty 1)
• FTXV15AVJU9: 1/4" x 1/2" Line Set (Qty 1)

Product Assurance:

• Performance and Efficiency:
  • SEER2: 20
  • HSPF2: 9.5
• Manufacturer Warranty: 5 Year Limited

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Component Specifications:
