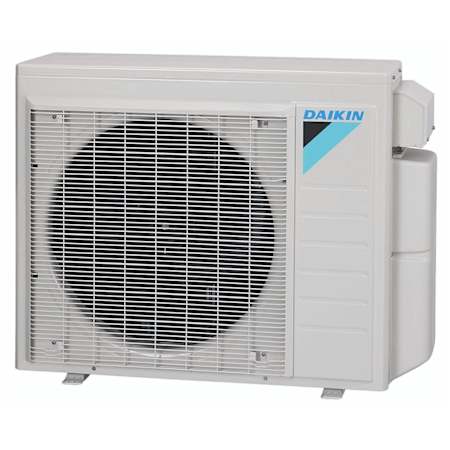

Daikin MXS 24,000 BTU Cooling 18 SEER Three Zone Mini Split Condenser Unit

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Outdoor condenser unit only, indoor evaporator unit(s) required for proper functionality. For questions or assistance building a multi-zone system, please call (855) 484-3292 to speak to one of our experts.

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. The 3MXS24WMVJU9 condenser supports three indoor units operating simultaneously, allowing you to build the ideal system type to fit your home's specific needs. A broad range of accessories are available to add to your system as well, which when combined with Daikin's extensive experience with building efficient units provides a solution to any home's heating and cooling needs.

Features:

• Design Your System from the Ground Up

Product Technologies:

• Smart Inverter Technology: The variable-speed inverter compressor helps to minimize temperature fluctuations along with providing continuous cooling and heating comfort.

• Energy Efficient: Daikin MXS condensers are highly efficient all year round and reduce operating costs compared to conventional systems.

• Quiet Operation: Able to reduce sound levels by up to three decibels, the Daikin MXS condenser provides quieter operation when needed.

• Low Ambient Cooling: MXS condensers will continue to operate optimally even in colder climates. With an operational cooling range down to 14°F, and a heating range down to 5°F, the MXS can provide heating or cooling in any environment.

Specifications:

• Cooling BTU Capacity: 24000
• Zone Capacity: 3
• Sound Level: 54 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: 5 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Depth: 12-5/8"
• Height: 28-15/16"
• Width: 34-1/4"
• Recommended Breaker Size: 15.5 A
• Amperage: 12.6 A
• Voltage: 208, 230V

Product Assurance:

• Certifications: AHRI
• Performance and Efficiency:
  • EER: 11.7
• Manufacturer Warranty: 12 Year Limited Parts

Required Components:

• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris
