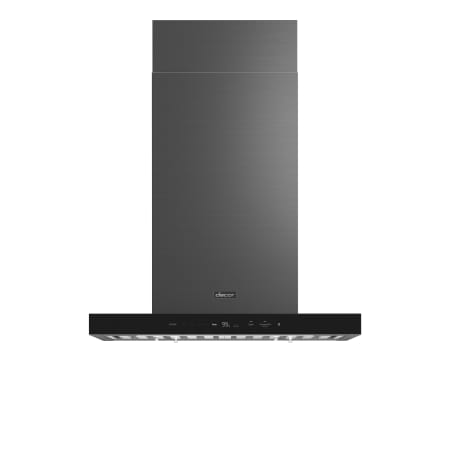

Dacor 390 - 390 CFM 36 Inch Wide Island Range Hood
Model: DHD36U990IM|Item: bci4383793
$2,699.00
Finish: Graphite Stainless -

24 In Stock
Finish: Graphite Stainless -
24 In Stock
Graphite Stainless
Details
The Island hood is designed with elegant lines, LED lighting, and a sophisticated glass touch control that seamlessly connects and pairs with your compatible Dacor cooking product.
Features:
- Blower outputs up to 390 CFM to keep your kitchen free of cooking fumes and odors

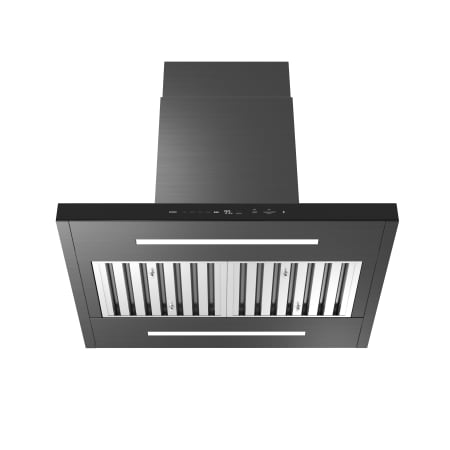

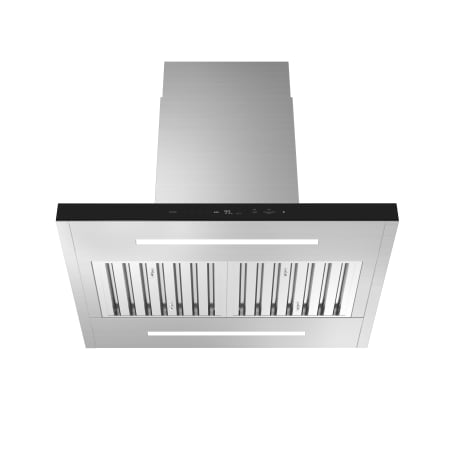

- Baffle filters effectively trap and filter out unwanted smoke, odors, and grease
- Included remote allows for easy control of the hood
- Hood is equipped with smart home capabilities
- LED lighting illuminates the cooking area
- Hood can be converted to ductless ventilation for improved efficiency and flexible installation options
- Touch controls allow you to easily set the power level of your range hood
- 4 available speeds provide just the right amount of ventilation
- Covered under a 2 year limited parts and labor manufacturer warranty
- Dishwasher-friendly baffles for easy cleanup
- Auto Connect turns fan on and adjusts the speed as necessary when compatible cooktop is used
- Auto-On turns hood on automatically if high temperatures are sensed
- Internal blower for easy installation
Specifications:
- CFM: 390, 600
- Sones: 10, 13.5
- Nominal Width: 36"
- Width: 36"
- Height: 2-3/8"
- Depth: 27-1/8"
- Duct Size: 10" Round
- Ceiling Height: 91.2" - 120"
- Height Above Cooktop: 36"
- Amperage: 15A
- Voltage: 120V

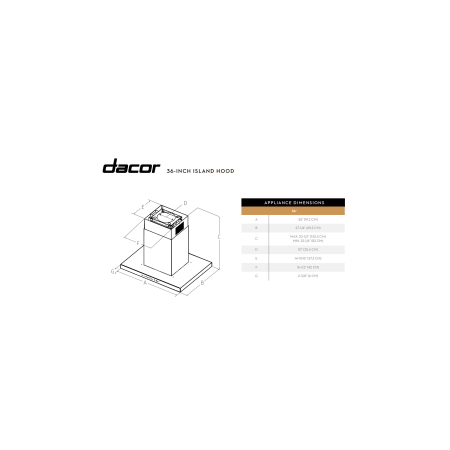

Dimensions and Measurements
Ceiling Height (Max) | 120 in. |
Ceiling Height (Min) | 91.2 in. |
CFM | 390, 600 |
CFM (High) | 390 |
Depth | 27.13 in. |
Duct Size | 10" Round |
Height | 2.37 in. |
Height Above Cooktop | 36" |
Height Above Cooktop (Max) | 36 in. |
Height Above Cooktop (Min) | 24 in. |
Nominal Width | 36 in. |
Product Weight | 49.6 lbs. |
Width | 36 in. |
Dimensions and Measurements
Ceiling Height (Max) | 120 in. |
Ceiling Height (Min) | 91.2 in. |
CFM | 390, 600 |
CFM (High) | 390 |
Depth | 27.13 in. |
Duct Size | 10" Round |
Height | 2.37 in. |
Height Above Cooktop | 36" |
Height Above Cooktop (Max) | 36 in. |
Height Above Cooktop (Min) | 24 in. |
Nominal Width | 36 in. |
Product Weight | 49.6 lbs. |
Width | 36 in. |
Included Components
Available Without Blower | No |
Convertible to Ductless / Recirculating | Yes |
Ductless | No |
Includes Remote | Yes |
Light Included | Yes |
Included Components
Available Without Blower | No |
Convertible to Ductless / Recirculating | Yes |
Ductless | No |
Includes Remote | Yes |
Light Included | Yes |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Touch |
Device Compatibility | Smartphone |
Duct Discharge | Horizontal, Vertical |
Filter Type | Baffle Filters |
Fingerprint Resistant | No |
Installation Type | Full Installation |
Material | Stainless Steel |
Panel Ready | No |
Smart Home | Yes |
Theme | Contemporary, Industrial, Modern, Traditional |
Wireless Communication | Bluetooth, WiFi |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Touch |
Device Compatibility | Smartphone |
Duct Discharge | Horizontal, Vertical |
Filter Type | Baffle Filters |
Fingerprint Resistant | No |
Installation Type | Full Installation |
Material | Stainless Steel |
Panel Ready | No |
Smart Home | Yes |
Theme | Contemporary, Industrial, Modern, Traditional |
Wireless Communication | Bluetooth, WiFi |
Electrical and Operational Information
Amperage | 15 |
Frequency | 60 Hertz |
Sones | 10, 13.5 |
Speeds | 4 |
Voltage | 120 |
Electrical and Operational Information
Amperage | 15 |
Frequency | 60 Hertz |
Sones | 10, 13.5 |
Speeds | 4 |
Voltage | 120 |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | No |
Country Of Origin | Mexico |
Energy Star | No |
Manufacturer Warranty | 2 Year Limited Parts and Labor |
Outdoor Approved | No |
Title 20 Compliant | No |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | No |
Country Of Origin | Mexico |
Energy Star | No |
Manufacturer Warranty | 2 Year Limited Parts and Labor |
Outdoor Approved | No |
Title 20 Compliant | No |
