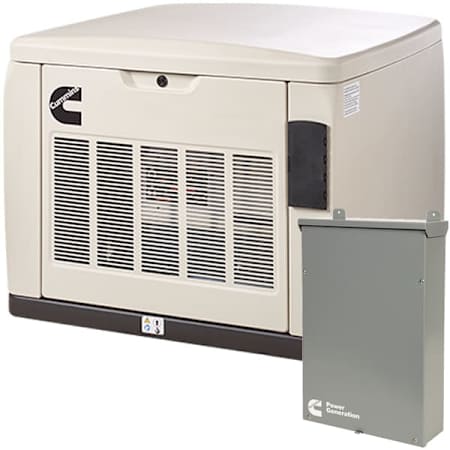

Cummins Quiet Connect Series 20kW (120 / 240V) Single-Phase Air Cooled Multi-Fuel Extreme Cold Weather Standby Generator with 200a Service Disconnect

Features:

Cummins Quiet ConnectSeries 20kW Air-Cooled Standby Generator Package

• Improved design, exercise modes, load management and monitoring

Includes 200-Amp Service Entrance Rated Automatic Transfer Switch

• Installs between main meter and service panel for faster and less costly installation

Extreme Cold Weather Equipped

• Operates in cold weather with performance down to -40 degrees F

Weather Protective Aluminum/Steel Sound Enclosure

• Can be installed* within 18" of a build (NFPA 37) - Always check local building codes

• Sound dampening engineering limits noise level to a low 65dB(A) at 7M

999cc Cummins Air-Cooled V-Twin OHV Engine

• Field-selectable, runs on ultra efficient natural gas or LP (vapor)

• Designed to operate down to 0 F; Cold weather accessories available for colder climates

< 5% THD (Total Harmonic Distortion)

• Clean power that won't damage your electronic devices

Patented "Crank Only" Exercise Mode

• Provides diagnostics without running engine for less wear and lower fuel costs

• Allows user to select time, date and frequency of exercise

Load Management Capability (Requires Load Management Kit - Sold Separately)

• Maximizes generator power by intelligently managing up to 2 electrical loads

Cummins Connect Cloud For Remote Monitoring

• Monitor, exercise and manually run the generator

• Use your computer, tablet or phone for maximum monitoring flexibility

Standard 5-Year / 2,000 Hour Limited Warranty

Overview:

• Product Category: Standby Generator
• Generator Features:
  • Cast Iron Engine Sleeve
  • Hour Meter
  • Low Oil Alert/Shutdown
• Product Weight: 540 lbs
• Length: 34-1/8"
• Width: 36"
• Height: 27-5/16"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Running Wattage: 20,000 Watts
• Fuel Type: Liquid Propane, Natural Gas
• NG Power Capacity: 18,000 Watts
• LP Power Capacity: 20,000 Watts
• NG Fuel Consumption @ 50% Load: 205 ft3/hr
• NG Fuel Consumption @ 100% Load: 300 ft3/hr
• LP Fuel Consumption @ 50% Load: 2 gallons/hr
• LP Fuel Consumption @ 100% Load: 3 gallons/hr
• Amperage: 75, 83A
• Decibel Rating @ 7m: 65 dbA
• Transfer Switch: Service Disconnect
• Enclosure Material: Aluminum
• Cooling Type: Air Cooled

Engine:

• Engine Brand: Cummins
• Starting System: 12v Auto Start
• Cubic Capacity: 999 CC
• RPM: 3600 RPM
• Low Oil Alert/Shutdown: Yes

Product Assurance:

• Certifications: UL
• Warranty: 5 Year
