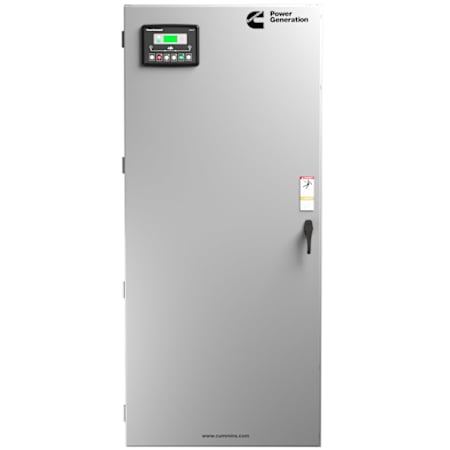

Cummins OTEC 600-Amp (120 / 208V) 3-Phase PowerCommand Indoor Automatic Transfer Switch

Features:

Cummins PowerCommandOTEC Automatic Transfer Switch

• Features the New PowerCommand40-11 control

600-Amp Automatic Transfer Switch (120/208V 3-Phase)

• For use with Cummins Onan Liquid Cooled Standby Generators

Designed For Standard Installation

• Requires a sub-panel for overload protection

Corrosion-Resistant NEMA 1R Enclosure

• Approved for indoor applications

• Lockable enclosure provides added Security

PowerCommand40-11 Control with LCD Digital Display

• Microprocessor-based control, fully featured design

• Front-panel PC software configuration with 3-Phase sensing on both sources

• Modbus RTU and TCP network communication and configurable output contact

• Event logging, synch check and manual restore to S1

Programmed Transition (Open Transition Timing)

• Can be adjusted to completely disconnect the load from both sources

Mechanical and Electrical Interlocking Design

• Prevents source-to-source connection through power/control wire

Easy Service and Access

• Door mounted controls, single-plug harness and field programmable

UL/CSA

Overview:

• Transfer Switch Style: Standard Installation
• Product Weight: 225 lbs
• Width: 25-1/2"
• Height: 18"

Specifications:

• Voltage: 120, 208V
• Frequency: 60 Hz
• Electrical Phases: 3
• Max Generator Input: 600A
• Max Utility Input: 600A
• Enclosure Material: NEMA 1R

Product Assurance:

• Certifications: UL
• Warranty: 1 Year
