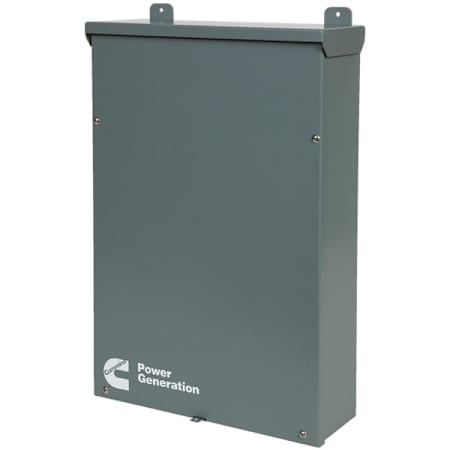

Cummins 100-Amp (120 / 240V) Single-Phase Outdoor Automatic Transfer Switch for RS/RX Generators

Features:

Cummins RS Series 100-Amp Automatic Transfer Switch

• Designed for Cummins RS and RX Series generators

Versatile Design

• For standby systems in residential and light commercial applications

Fully-Automatic - Monitors Utility Power 24/7

• When utility power becomes unsatisfactory or fails

• Genset is signaled to start and then automatically transfers load

• When power returns load is shifted back to utility power

NEMA 3R (Indoor/Outdoor) Aluminum Enclosure

• Give you the flexibility to install inside or outside the home

Mechanically Interlocked Contactor

• Long life, silver alloy contact resists burning and pitting

• Powerful and economical solenoid drives the mechanism

Ease Of Connection

• Solderless screw type terminals for external power connections

Rated at 100-Amps at 240-Volts

Overview:

• Transfer Switch Style: Standard Installation
• Product Weight: 33 lbs
• Width: 17"
• Height: 7-3/8"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Electrical Phases: 1
• Max Generator Input: 100A
• Max Utility Input: 100A
• Enclosure Material: NEMA 3R

Product Assurance:

• Certifications: UL
• Warranty: 1 Year
