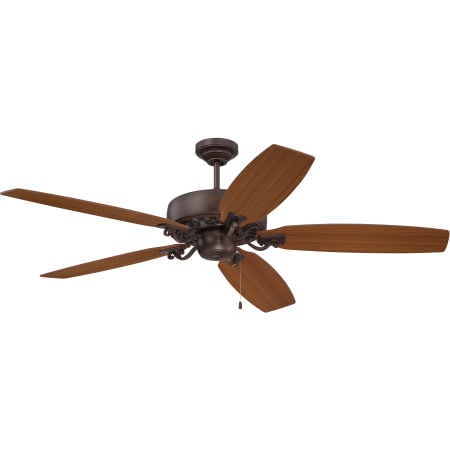

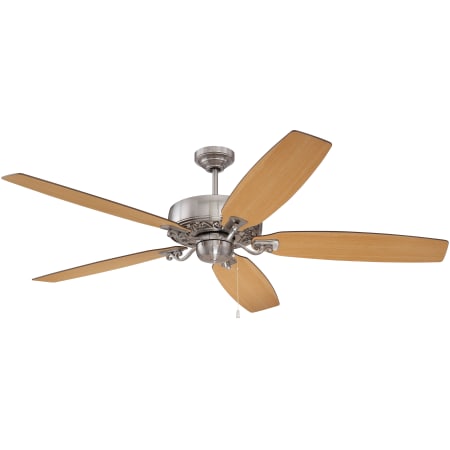

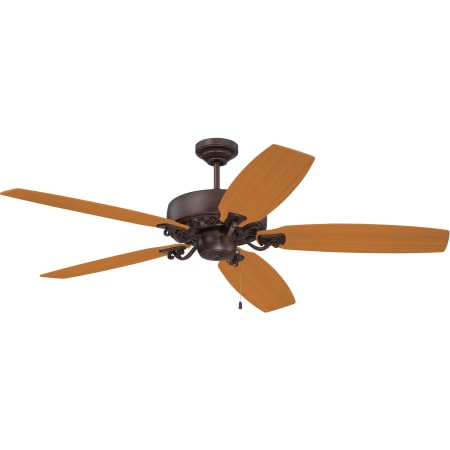

Craftmade Patterson 64" 5 Blade Indoor Ceiling Fan - Blades Included

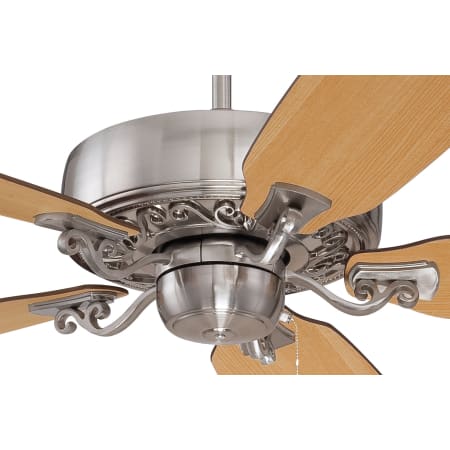

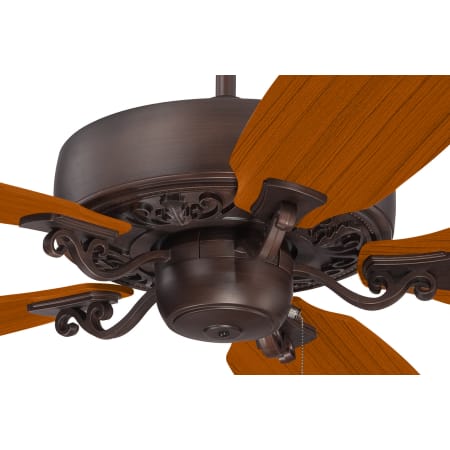

Decorative details, subtle, intricate and exceptionally rendered, distinguish the Patterson from the prosaic. This classically styled ceiling fan offers a richness and finesse that borders on art. Uniquely contoured fan blades anchor to a handsomely proportioned housing with sculptured blade arms that evoke the look and feel of fine metalwork. Even the canopy with its finely etched details gives testimony to the outstanding craftsmanship.

Included Components:

• Heavy-Duty, 3 Speed Reversible Motor
• (5) Custom Patterson Blades
• 6" Downrod

Features:

• Dry Location rated
• Pull Chain Control
• Limited Lifetime Warranty
• Light Kit Adaptable
• Optional Remote Control (sold separately)

Blade Specifications:

• Blade Span: 64"
• Number of Blades: 5
• Blade Pitch: 12°
• Blades Included: Yes
• Blades Reversible: Yes

Motor Specifications:

• Motor Type: AC Induction
• Motor Size: 188mm x 25mm
• Reversible Motor: Yes
• CFM (Cubic Feet per Minute), High: 5400.56
• RPM (High): 111
• Voltage: 120 V

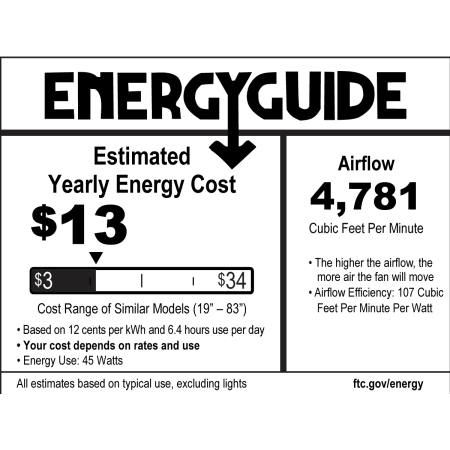

• Airflow Efficiency: 73.98 (CFM/Watt)
• Number of Speeds: 3

Sloped Ceiling Specifications:

• For ceilings with slope from 35° to 45°, use the 45AD angled ceiling adapter

High or Low Ceiling Specifications:

• The Patterson is designed for installation on standard 8 to 9 foot ceilings. If your ceiling is higher, you'll need to purchase an additional downrod. The rule of thumb is that ceiling fans should have a minimum of 7 feet and a maximum of 9 feet of clearance between the bottom of the fan and the floor in order to circulate air efficiently. If you have a low ceiling, purchase the CMA flush mount adapter to reduce the hanging height of your fan.

Suggested Downrod Lengths:

• 9 Foot Ceiling: 6" - 12"
• 10 Foot Ceiling: 12" - 18"
• 11 Foot Ceiling: 18" - 24"
• 12 Foot Ceiling: 24" - 36"
• 13 Foot Ceiling: 36" - 48"
• 14 Foot Ceiling: 48" - 60"
• 15 Foot Ceiling: 60" - 72"
• For ceiling heights greater than 15 feet, you'll need to purchase the downrod Coupler to join two downrods together.
