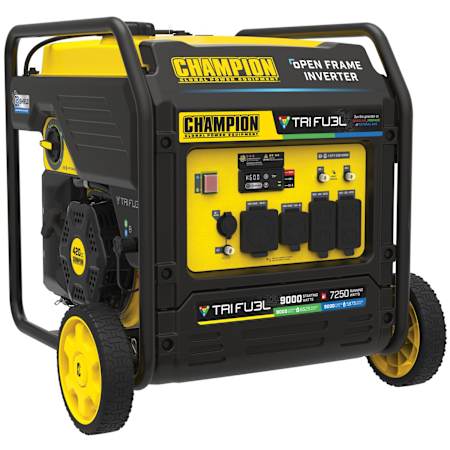

Champion 7,250-Watt (120 / 240V) Electric Button / Recoil Start Tri-Fuel Open Frame Inverter Portable Generator with CO Shield (49-State)
Model: 201176|Item: bci5177191
Details

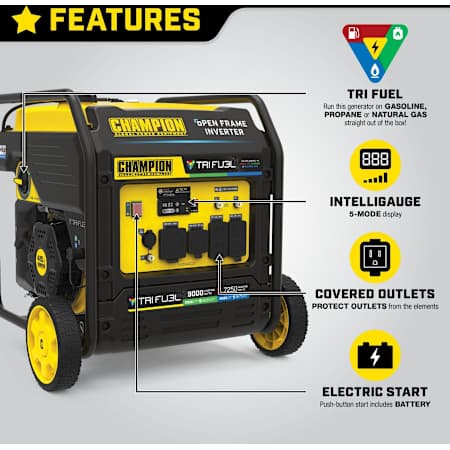

Features:
Champion 7250 Watt Tri-Fuel Open-Frame Inverter Generator

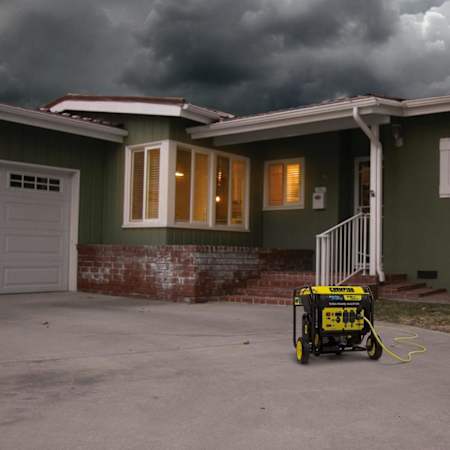

- Ideal for emergency backup and general power needs
Versatile, Tri-Fuel Operation (Propane Tank Not Provided)
- 9000 W (Starting)/ 7250 W (Rated) when using Gasoline
- 9000 W (Starting)/ 6525 W (Rated) when using Propane
- 9000 W (Starting)/ 5875 W (Rated) when using Natural Gas

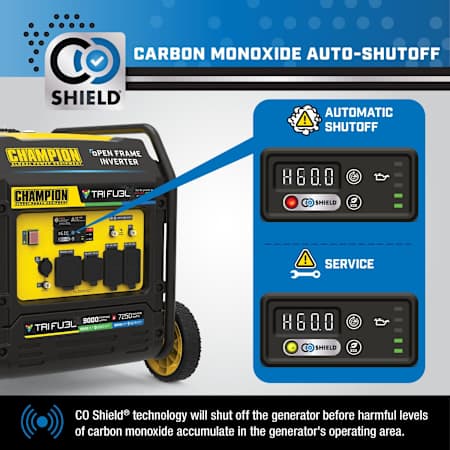

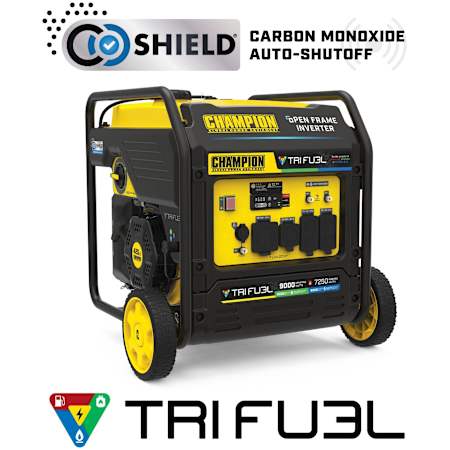

CO Shield Technology
- Alerts and shut off the generator automatically
Quiet Technology - 50% Quieter and 20% Lighter
- Compared to a traditional 7000W generator
Clean Power Technology - Less Than 3% THD
- Safer power for your electronics and equipment
Push-Button Electric Start (Battery Included)
- Plus an easy-pull recoil starter, so you'll always be ready for an outage
420cc Champion OHV 4-Stroke Engine with Low-Oil Protection
- Fuel-efficient, reliable and made for easier starting (Recoil)
- Provides added protection to extend the life of the generator
Economy Mode - Up to 14 Hours of Run Time at 25% Load
- Adjusts engine speed to the optimum level depending on load
- Reduces fuel use and engine wear for extended operation
120/240V 50-Amp (L14-50R) and 30-Amp (14-30R) Outlets***

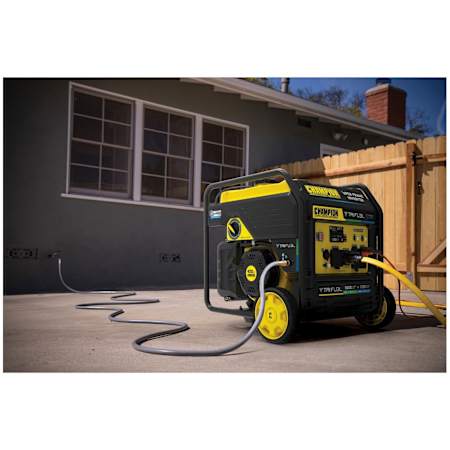

- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord

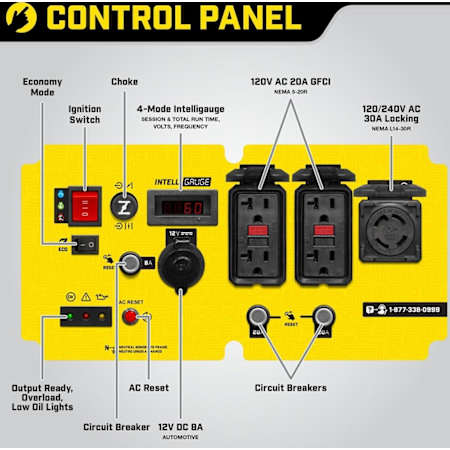

IntelligaugeDigital Display
- Easily monitor your voltage, frequency and operating hours
Circuit Breaker Protection
- Helps prevent overload to generator
8" Never-Flat Wheels and Folding Handle
- Makes this generator extremely portable
12V DC Outlet
- Includes 12V/DC USB adapter for charging phones/tablets

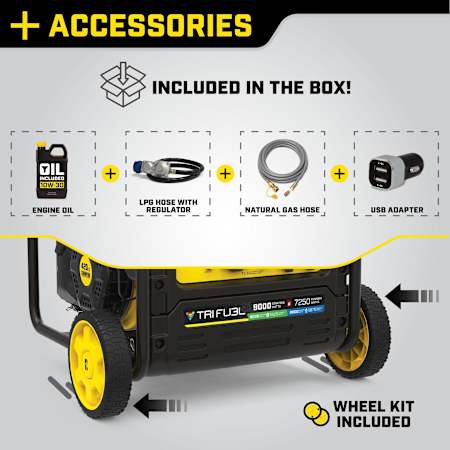

Also Includes

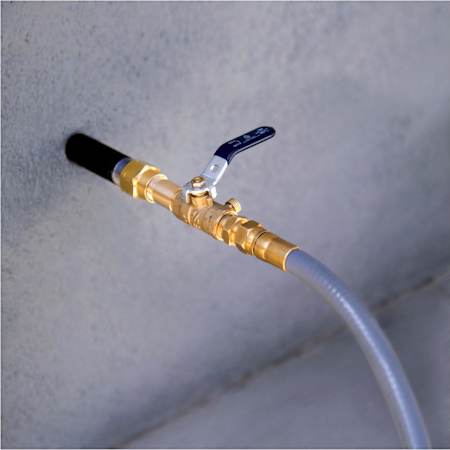

- Oil, Oil Funnel, Propane Hose, NG Hose and Owner's Manual
3-Year Limited Warranty - EPA Certified
Non-CARB Compliant - Not For Sale In California
Meets ANSI/PGMA G300-2018 Requirements
***Note - Allows You To Get Maximum Power From Generator
Overview:
- Product Category: Portable Generator
- Generator Features:
- Automatic Voltage Regulation
- Cast Iron Engine Sleeve
- CO Sensing
- Fuel Gauge
- Hour Meter
- Idle Control
- Low Oil Alert/Shutdown
- Battery Included
- Product Weight: 156.6 lbs
- Length: 26-5/8"
- Width: 25-1/2"
- Height: 25-3/8"
Specifications:
- Voltage: 120, 240V
- Frequency: 60 Hz
- Running Wattage: 7,250 Watts
- Starting Wattage: 9,000 Watts
- Fuel Type: Gasoline, Liquid Propane, Natural Gas
- Amperage: 30.2A
- Decibel Rating @ 7m: 72 dbA
Engine:
- Engine Brand: Champion
- Starting System: 12-Volt Button Start w/ Recoil
- Cubic Capacity: 420 CC
- Low Oil Alert/Shutdown: Yes
Product Assurance:
- EPA Compliant
- Warranty: 3 Year
Plug Types:

(1) 10-Amp DC - Cigarette Adapter

(1) NEMA 14-50R

(1) NEMA L14-30R

(2) NEMA 5-20R - GFCI
Manufacturer Resources
Owners ManualQuick Start GuideSafety Data Sheet: BatterySafety Data Sheet: OilSpecification SheetDimensions and Measurements
Fuel Tank Capacity | 4.32 Gallons |
Height | 25.4 in. |
Length | 26.6 in. |
Product Weight | 156.6 lbs. |
Width | 25.5 in. |
Dimensions and Measurements
Fuel Tank Capacity | 4.32 Gallons |
Height | 25.4 in. |
Length | 26.6 in. |
Product Weight | 156.6 lbs. |
Width | 25.5 in. |
Included Components
Automatic Transfer Switch Included | No |
Battery Included | Yes |
Included Components
Automatic Transfer Switch Included | No |
Battery Included | Yes |
Characteristics and Features
Assembly Required | Yes |
Engine Brand | Champion |
Fuel Tank Material | Metal |
Generator Features | Automatic Voltage Regulation, Cast Iron Engine Sleeve, CO Sensing, Fuel Gauge, Hour Meter, Idle Control, Low Oil Alert/Shutdown |
Characteristics and Features
Assembly Required | Yes |
Engine Brand | Champion |
Fuel Tank Material | Metal |
Generator Features | Automatic Voltage Regulation, Cast Iron Engine Sleeve, CO Sensing, Fuel Gauge, Hour Meter, Idle Control, Low Oil Alert/Shutdown |
Electrical and Operational Information
Amperage | 30.2 |
Cubic Capacity | 420 cc |
Decibel Rating @ 7m | 72 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Fuel Type | Gasoline, Liquid Propane, Natural Gas |
Plug Type | (1) 10-Amp DC - Cigarette Adapter, (1) NEMA 14-50R, (1) NEMA L14-30R, (2) NEMA 5-20R - GFCI |
Run Time @ 50% Load | 6.5 Hours |
Running Wattage | 7250 |
Starting System | 12-Volt Button Start w/ Recoil |
Starting Wattage | 9000 |
Voltage | 120, 240 |
Electrical and Operational Information
Amperage | 30.2 |
Cubic Capacity | 420 cc |
Decibel Rating @ 7m | 72 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Fuel Type | Gasoline, Liquid Propane, Natural Gas |
Plug Type | (1) 10-Amp DC - Cigarette Adapter, (1) NEMA 14-50R, (1) NEMA L14-30R, (2) NEMA 5-20R - GFCI |
Run Time @ 50% Load | 6.5 Hours |
Running Wattage | 7250 |
Starting System | 12-Volt Button Start w/ Recoil |
Starting Wattage | 9000 |
Voltage | 120, 240 |
Warranty and Product Information
Approved for Commercial Use | No |
CARB approved | No |
EPA Compliant | Yes |
Made in America | Yes |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Approved for Commercial Use | No |
CARB approved | No |
EPA Compliant | Yes |
Made in America | Yes |
Manufacturer Warranty | 3 Year |
