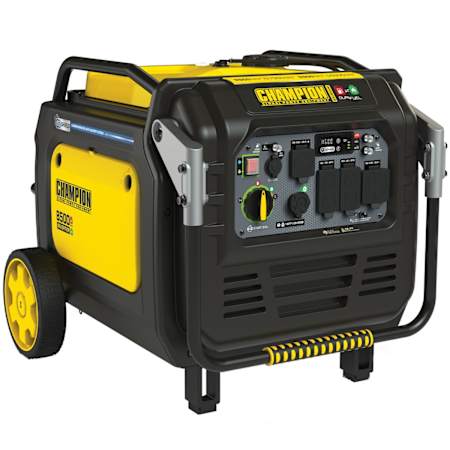

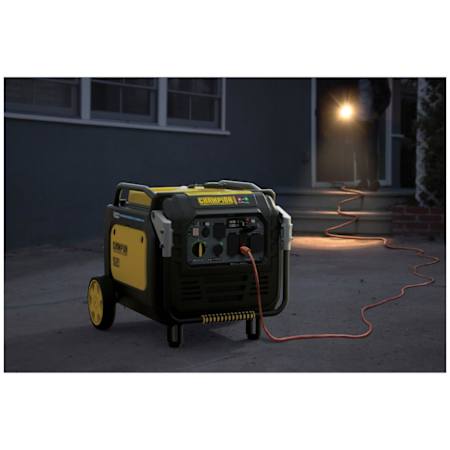

Champion 7,000-Watt (120 / 240V) Electric Button / Recoil Start Multi-Fuel Inverter Portable Generator with CO Shield (49-State)
Model: 201175|Item: bci5177196
Details

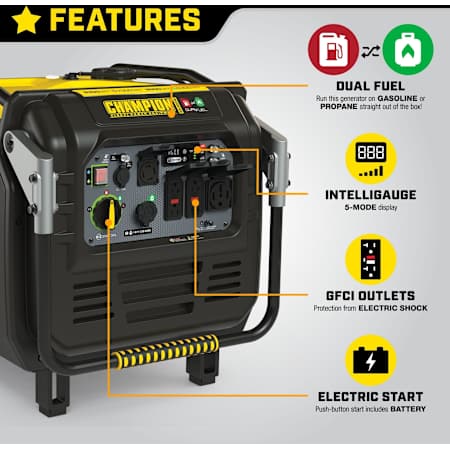

Features:
Champion Electric Start Dual Fuel Inverter Generator

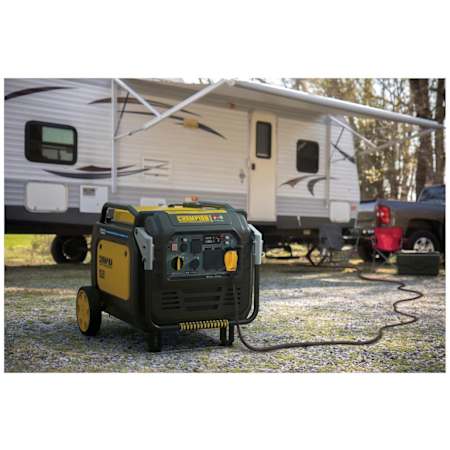

- Ideal for emergency back-up and RV applications
Dual Fuel Operation
- 7000 Running watts and up to 8500 starting watts on gasoline
- 6300 Running watts and up to 8500 starting watts on propane

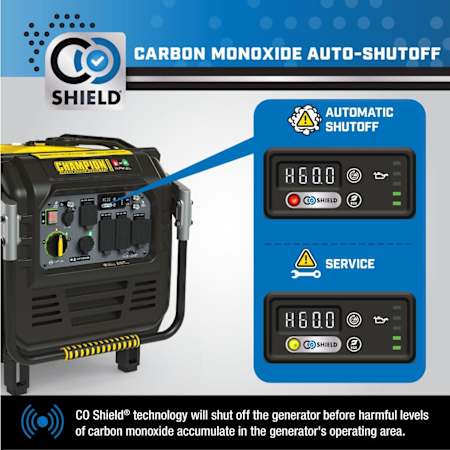

CO Shield Technology
- Alerts and shut off the generator automatically
Quiet Technology - Fully Enclosed Design
- Compared to a traditional 7000W generator
Clean Power Technology - Less Than 3% THD
- Safer power for your electronics and equipment

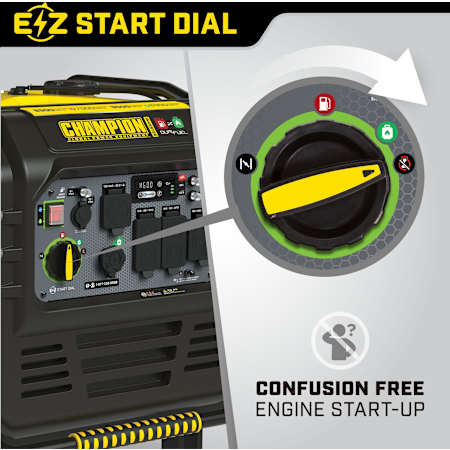

EZ Start Dial with Cold Start Technology
- Makes starting your generator an easy task
- Allows for easier starting in cold weather
Push-Button Electric Start (Battery Included)
- Plus an easy-pull recoil starter, so you'll always be ready for an outage
420cc Champion OHV 4-Stroke Engine with Low-Oil Protection
- Fuel-efficient, reliable and made for easier starting (Recoil)
- Provides added protection to extend the life of the generator
Economy Mode Switch - Up to 14 Hours of Run Time at 25% Load
- Adjusts engine speed to the optimum level depending on load
- Reduces fuel use and engine wear for extended operation
120/240V 50-Amp (L14-50R) and 30-Amp (14-30R) Outlets***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
IntelligaugeDigital Display
- Easily monitor your voltage, frequency and operating hours
Circuit Breaker Protection
- Helps prevent overload to generator
9.5" Never-Flat Wheels and Folding Handle
- Makes this generator extremely portable
Added Features
- 12V DC Outlet and USDA-Approved Spark Arrestor/Muffler
Also Includes:
- USB Adapter, Propane Hose, Engine Oil and Funnel
3-Year Limited Warranty
Meets ANSI/PGMA G300-2018 Requirements
EPA / Non-CARB Compliant - Not For Sale In California
Overview:
- Product Category: Portable Generator
- Generator Features:
- Automatic Voltage Regulation
- Cast Iron Engine Sleeve
- CO Sensing
- Fuel Gauge
- Hour Meter
- Idle Control
- Low Oil Alert/Shutdown
- Battery Included
- Product Weight: 213.9 lbs
- Length: 33-3/8"
- Width: 29-1/8"
- Height: 26"
Specifications:
- Voltage: 120, 240V
- Frequency: 60 Hz
- Running Wattage: 7,000 Watts
- Starting Wattage: 8,500 Watts
- Amperage: 29.2A
- Decibel Rating @ 7m: 61 dbA
Engine:
- Engine Brand: Champion
- Starting System: 12-Volt Button Start w/ Recoil
- Cubic Capacity: 420 CC
- Low Oil Alert/Shutdown: Yes
Product Assurance:
- EPA Compliant
- Warranty: 3 Year
Plug Types:

(1) 10-Amp DC - Cigarette Adapter

(1) NEMA 14-50R

(1) NEMA L14-30R

(2) NEMA 5-20R - GFCI
Manufacturer Resources
Owners ManualQuick Start GuideSafety Data Sheet: BatterySafety Data Sheet: OilSpecification SheetDimensions and Measurements

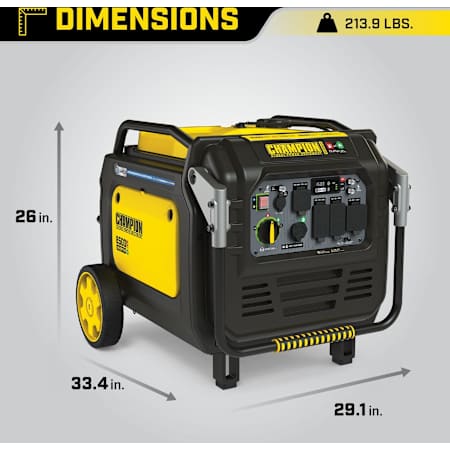

Fuel Tank Capacity | 5.3 Gallons |
Height | 26 in. |
Length | 33.4 in. |
Product Weight | 213.9 lbs. |
Width | 29.1 in. |
Dimensions and Measurements
Fuel Tank Capacity | 5.3 Gallons |
Height | 26 in. |
Length | 33.4 in. |
Product Weight | 213.9 lbs. |
Width | 29.1 in. |
Included Components
Automatic Transfer Switch Included | No |
Battery Included | Yes |
Included Components
Automatic Transfer Switch Included | No |
Battery Included | Yes |
Characteristics and Features
Assembly Required | Yes |
Engine Brand | Champion |
Fuel Tank Material | Metal |
Generator Features | Automatic Voltage Regulation, Cast Iron Engine Sleeve, CO Sensing, Fuel Gauge, Hour Meter, Idle Control, Low Oil Alert/Shutdown |
Characteristics and Features
Assembly Required | Yes |
Engine Brand | Champion |
Fuel Tank Material | Metal |
Generator Features | Automatic Voltage Regulation, Cast Iron Engine Sleeve, CO Sensing, Fuel Gauge, Hour Meter, Idle Control, Low Oil Alert/Shutdown |
Electrical and Operational Information
Amperage | 29.2 |
Cubic Capacity | 420 cc |
Decibel Rating @ 7m | 61 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Fuel Type | Liquid Propane, Natural Gas |
Plug Type | (1) 10-Amp DC - Cigarette Adapter, (1) NEMA 14-50R, (1) NEMA L14-30R, (2) NEMA 5-20R - GFCI |
Running Wattage | 7000 |
Starting System | 12-Volt Button Start w/ Recoil |
Starting Wattage | 8500 |
Voltage | 120, 240 |
Electrical and Operational Information
Amperage | 29.2 |
Cubic Capacity | 420 cc |
Decibel Rating @ 7m | 61 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Fuel Type | Liquid Propane, Natural Gas |
Plug Type | (1) 10-Amp DC - Cigarette Adapter, (1) NEMA 14-50R, (1) NEMA L14-30R, (2) NEMA 5-20R - GFCI |
Running Wattage | 7000 |
Starting System | 12-Volt Button Start w/ Recoil |
Starting Wattage | 8500 |
Voltage | 120, 240 |
Warranty and Product Information
Approved for Commercial Use | No |
CARB approved | No |
EPA Compliant | Yes |
Made in America | Yes |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Approved for Commercial Use | No |
CARB approved | No |
EPA Compliant | Yes |
Made in America | Yes |
Manufacturer Warranty | 3 Year |
