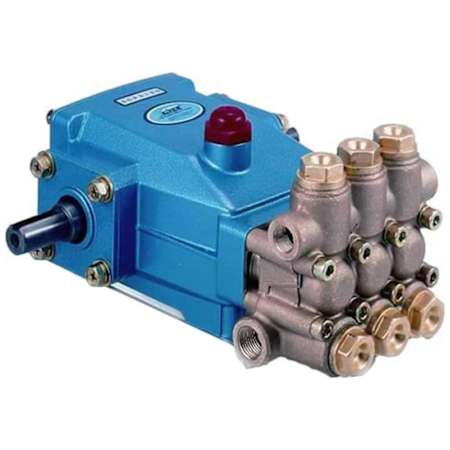

CAT Pumps CAT Pumps 3500 PSI 4.5 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)

***Pump Does Not Include Required Shaft Protector. Must Be Purchased Separately***

Product Information:

• High Quality Replacement For Worn Out Pumps
  • Professional grade pump for belt-driven pressure washers
  • Can be rebuilt to save money and extend life of pump


• Triplex Plunger Pump
  • Belt driven for less wear and extended life
  • Ceramic plungers ensure even wear and extended seal life
  • Triplex plunger design provides smooth liquid flow


• Convenient Connection To Most 3/4" Gas Engine Flange
  • 20mm solid shaft spins at 1645 rpm
  • Bore diameter 16mm (.630"); stroke 18mm (.709")
  • Suited for 14-HP engines; no siphon tube barb
  • Maximum water temperature of 160 degrees


• Does Not Include Adjustable Pressure Unloader Or Injector


• Powerful And Versatile
  • Pump ships as shown; need to reuse your connectors or purchase separately
  • Will push 4.5 gpm @ 3500 psi
  • Chemical Injector (ACI005), unloader kit (302) & mountingr rails (sold separately)


• Be Sure To Measure The Shaft & Flange Bolt Holes Accurately!: There is a 25% restock fee for returned pumps


• Pump Does Not Come With Mounting Brackets (Part 1346D)
  • See the Owner's Manual (under the Specs tab) for dimensions
  • Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately


• Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)
  • 4. Engine Brand and HP (model # if available would be helpful)


• ***Shaft Size Measurements Must Be Precise***

Specifications:

• CARB Approved
• Warranty: 5 Year Consumer

Dimensions:

• Height: 5-3/4"
• Width: 10"
• Length: 10-3/8"
• Product Weight: 20 lbs
