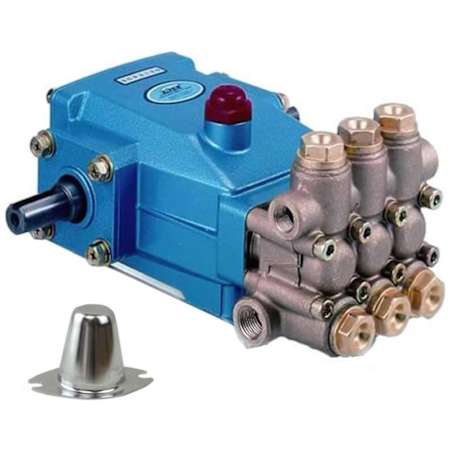

CAT Pumps CAT Pumps 3500 PSI 4.5 GPM (Solid Shaft) Triplex Pressure Washer Pump w/ Shaft Cover (Belt Drive)

Product Information:

• High Quality Replacement For Worn Out Pumps
  • Professional grade pump for belt-driven pressure washers
  • Can be rebuilt to save money and extend life of pump


• Triplex Plunger Pump
  • Belt driven for less wear and extended life
  • Ceramic plungers ensure even wear and extended seal life
  • Triplex plunger design provides smooth liquid flow


• Convenient Connection To Most 3/4" Gas Engine Flange
  • 20mm solid shaft spins at 1645 rpm
  • Bore diameter 16mm (.630"); stroke 18mm (.709")
  • Suited for 14-HP engines; no siphon tube barb
  • Maximum water temperature of 160 degrees


• Includes Shaft Protection Cover: Cover prevents injuries from rotating parts & protects shaft against external dirt


• Does Not Include Adjustable Pressure Unloader Or Injector
  • Rails provide solid base for the installation and minimizes vibrations for longer pump life
  • Pump ships as shown; need to reuse your connectors or purchase separately
  • Chemical Injector (ACI005) & Unloader Kit (302) Sold Separately


• Shaft Size Measurements Must Be Precise
  • There is a 25% restock fee on returned pumps
  • Dimensions are in the Spec sheet download under the Specs tab
  • This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)



Specifications:

• CARB Approved
• Warranty: 5 Year Consumer

Dimensions:

• Height: 5-3/4"
• Width: 10"
• Length: 10-3/8"
• Product Weight: 20 lbs
