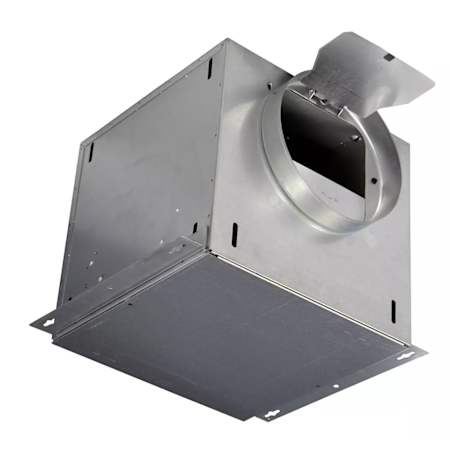

Canarm 333 CFM 5.2 Sone Ceiling / Wall Mounted In-Line Fan
Model: CBFI300|Item: bci5204580
Details
The Canarm CBF Series commercial bathroom fans are engineered for reliable performance in offices, conference rooms, public restrooms, and other commercial spaces. Designed with EC motors and forward curved wheels, these fans combine high efficiency with quiet operation, delivering powerful ventilation while keeping energy use low. Each unit features a built-in speed control for adjustable airflow, along with an insulated cabinet that minimizes sound and enhances performance. Available in four sizes with capacities ranging from 60 to 1500 CFM, the CBF Series provides solutions for both small and large spaces. Models 150 and 300 include a standard poly grille, while the 700 and 1500 models are equipped with a standard metal grille for durability in heavier-use environments. The series is also offered in inline versions (CBFI), providing flexible installation options to meet the needs of diverse commercial projects.
Features:
- 333 CFM output quickly clears your bathroom of moisture
- 5.2 sones of sound output for privacy while using your bathroom
- Covered under 1 Year Limited manufacturer warranty
Specifications:
- CFM: 333
- Sones: 5.2
- Duct Size: 8" Round
- Housing Width: 12-1/4"
- Housing Length: 12-1/4"
- Housing Depth: 11-13/16"
- Amperage: 0.78A
- Voltage: 120V
- Wattage: 55W
Dimensions and Measurements
CFM | 333 |
Depth | 11.8125 in. |
Duct Size | 8" Round |
Housing Depth | 11.8125 in. |
Housing Length | 12.25 in. |
Housing Width | 12.25 in. |
Length | 12.25 in. |
Product Weight | 23 lbs. |
Wheel Diameter | 7.8125 in. |
Width | 12.25 in. |
Dimensions and Measurements
CFM | 333 |
Depth | 11.8125 in. |
Duct Size | 8" Round |
Housing Depth | 11.8125 in. |
Housing Length | 12.25 in. |
Housing Width | 12.25 in. |
Length | 12.25 in. |
Product Weight | 23 lbs. |
Wheel Diameter | 7.8125 in. |
Width | 12.25 in. |
Included Components
Heater Included | No |
Includes Remote | No |
Light Included | No |
Included Components
Heater Included | No |
Includes Remote | No |
Light Included | No |
Characteristics and Features
Duct Discharge | Horizontal, Vertical |
Fan Type | In-Line Fan |
Housing Shape | Square |
Humidity Sensing | No |
Installation Type | Full Install |
Material | Steel |
Mount Type | Ceiling, Wall |
Characteristics and Features
Duct Discharge | Horizontal, Vertical |
Fan Type | In-Line Fan |
Housing Shape | Square |
Humidity Sensing | No |
Installation Type | Full Install |
Material | Steel |
Mount Type | Ceiling, Wall |
Electrical and Operational Information
Amperage | 0.78 |
Drive Type | Direct Drive |
Horsepower | 0.07 |
Sones | 5.2 |
Voltage | 120 |
Wattage | 55 |
Electrical and Operational Information
Amperage | 0.78 |
Drive Type | Direct Drive |
Horsepower | 0.07 |
Sones | 5.2 |
Voltage | 120 |
Wattage | 55 |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | Yes |
Certifications | ETL |
Country Of Origin | China |
Fire Rated | No |
Manufacturer Warranty | 1 Year Limited |
Title 20 Compliant | Yes |
Title 24 | No |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | Yes |
Certifications | ETL |
Country Of Origin | China |
Fire Rated | No |
Manufacturer Warranty | 1 Year Limited |
Title 20 Compliant | Yes |
Title 24 | No |
