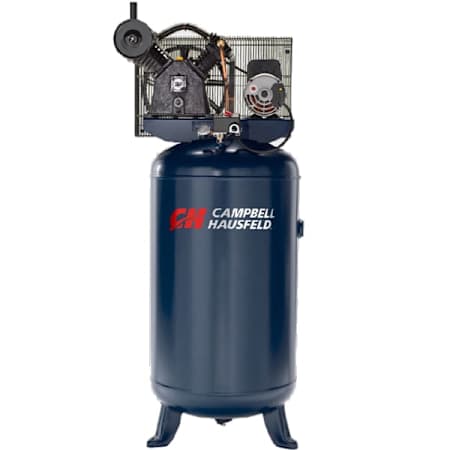

Campbell Hausfeld 5 HP 80 Gal 175 Max PSI 11.9 CFM Two-Stage Stationary Electric (230 Volt 1 Phase) Reciprocating Air Compressor
Model: XC802100.COM|Item: bci5121383
$1,975.27
103 In Stock
Details
Specifications:
- Certifications: ASME, CSA, and UL
- Fuel Type: Electric
- Height: 80"
- Width: 42"
- Length: 31"
- Product Weight: 410 lbs
- Warranty: 3 Year Commercial and 3 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 80
Pump Specifications:
- Oil Sight Glass Included
- Lubrication Type: Oil Lubricated
- CFM: 12
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 5 HP
- Amperage: 22A
- Voltage: 230V
- Voltage: 230V
Manufacturer Resources
Product ManualDimensions and Measurements
CFM | 11.9 |
Height | 80 in. |
Length | 31 in. |
Product Weight | 410 lbs. |
Width | 42 in. |
Dimensions and Measurements
CFM | 11.9 |
Height | 80 in. |
Length | 31 in. |
Product Weight | 410 lbs. |
Width | 42 in. |
Characteristics and Features
After Cooler Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 22 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 230 |
Electrical and Operational Information
Amperage | 22 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 3 Year Commercial, 3 Year Residential |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 3 Year Commercial, 3 Year Residential |
