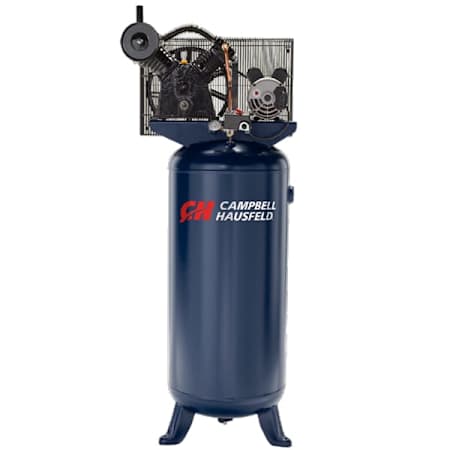

Campbell Hausfeld 3.7 HP 60 Gal 175 Max PSI Two-Stage Stationary Electric (230 Volt 1 Phase) Reciprocating Air Compressor
Model: XC602100.COM|Item: bci5121330
$1,299.00
23 In Stock
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 4 to 5 business days
-Details
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 74"
- Width: 33"
- Length: 29"
- Product Weight: 255 lbs
- Warranty: 3 Year Commercial and 3 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 60
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 7
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 3.7 HP
- Voltage: 230V
- Voltage: 230V
Manufacturer Resources
Product ManualDimensions and Measurements
CFM | 6.9 |
Height | 74 in. |
Length | 29 in. |
Product Weight | 255 lbs. |
Width | 33 in. |
Dimensions and Measurements
CFM | 6.9 |
Height | 74 in. |
Length | 29 in. |
Product Weight | 255 lbs. |
Width | 33 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 90 PSI | 7.6 CFM |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 60 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 90 PSI | 7.6 CFM |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 60 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 3.7 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 230 |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 3.7 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 3 Year Commercial, 3 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 3 Year Commercial, 3 Year Residential |
