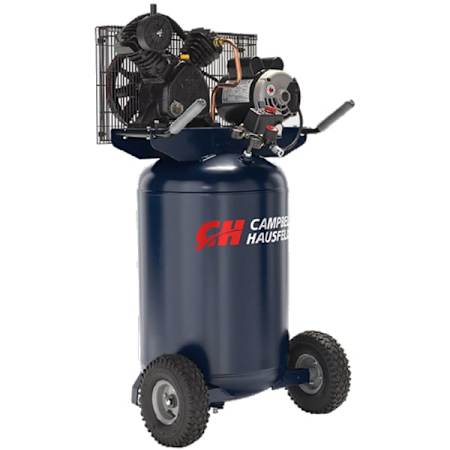

Campbell Hausfeld 2 HP 30 Gal 175 Max PSI Two-Stage Portable Electric (120, 240 Volt) Reciprocating Air Compressor
Model: XC302100|Item: bci5120586
$803.06
12 In Stock
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 4 to 5 business days
-Details
Product Information:
- Campbell Hausfeld XC302100 Two Stage Air Compressor: Designed for the serious DIY'er, professional, or contractor
- Rugged, Cast Iron Two Stage Pump
- Oil-lubricated for extended performance
- Up to 5,000 hours based on B-10 bearing rating
- 2 HP, Dual-Voltage Motor (120/240V): Versatile design for a wide variety of applications
- 4.1 CFM @ 90 PSI: Powerful enough to run many air tools
- Commercial V-Belt Drive
- Delivers smooth power transfer & long service life
- Totally enclosed metal belt guard for safety
- 30 Gallon Tank
- Vertical tank saves space, provides easy access
- Certified to 175 PSI maximum pressure for safe operation
- Pressure Switch For Automatic Stop/Start Operation: Makes sure air pressure always meets demand
- Oil Level Sight Glass: Easier to monitor and maintain
- Wide Base Mount: Adds stability & increases belt life
- 10" Semi-Pneumatic Wheels: Easy to move around the garage or workshop
- 3-Year Limited Warranty
Specifications:
- Fuel Type: Electric
- Height: 52"
- Width: 23"
- Length: 29"
- Product Weight: 178 lbs
- Warranty: 3 Year Residential
Included Accessories:
- Pressure Gauge Included
- Pressure Regulator Included
Tank Specifications:
- Tank Outlet Size: 1/4"
- Tank Size: 30
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 4
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 2 HP
- Amperage: 15, 7.5A
- Voltage: 120, 240V
- Voltage: 120, 240V
Manufacturer Resources
Product ManualDimensions and Measurements
CFM | 4.1 |
Height | 52 in. |
Length | 29 in. |
Product Weight | 178 lbs. |
Width | 23 in. |
Dimensions and Measurements
CFM | 4.1 |
Height | 52 in. |
Length | 29 in. |
Product Weight | 178 lbs. |
Width | 23 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/4" |
Tank Size | 30 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/4" |
Tank Size | 30 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 15, 7.5 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 2 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 120, 240 |
Electrical and Operational Information
Amperage | 15, 7.5 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 2 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 120, 240 |
Warranty and Product Information
Manufacturer Warranty | 3 Year Residential |
Warranty and Product Information
Manufacturer Warranty | 3 Year Residential |
